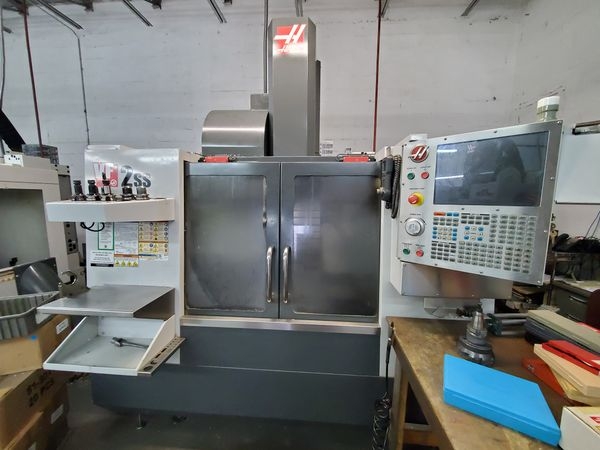

Pre-owned HAAS VF2SS 2011 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SS before it's gone.
Notify Me:
Specs:
X Axis Travel: 30 "
Y Axis Travel: 16 "
Z Axis Travel: 20 "
Rapid Rate X Axis: 1400 IPM
Rapid Rate Y Axis: 1400 IPM
Rapid Rate Z Axis: 1400 IPM
Table Size: 36" x 18"
Max Table Load: 1500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Dimensions: 106" x 101" x 101"
Weight: 7800 LBS
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Y Axis Travel: 16 "
Z Axis Travel: 20 "
Rapid Rate X Axis: 1400 IPM
Rapid Rate Y Axis: 1400 IPM
Rapid Rate Z Axis: 1400 IPM
Table Size: 36" x 18"
Max Table Load: 1500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Dimensions: 106" x 101" x 101"
Weight: 7800 LBS
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Options:
Auger
