M6 - HAAS VF2SS 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Machin...Read More
Rigging:
$1,400
Specs:
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer Positions: 24 + 1 ATC
Tool Changer Style: Sidemount
Price New As Equipped, Including HA5C: $92,400.00 USD
Dimensions: 106" L x 99" W x 101" H
Weight: 7,800 LBS
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer Positions: 24 + 1 ATC
Tool Changer Style: Sidemount
Price New As Equipped, Including HA5C: $92,400.00 USD
Dimensions: 106" L x 99" W x 101" H
Weight: 7,800 LBS
Options:

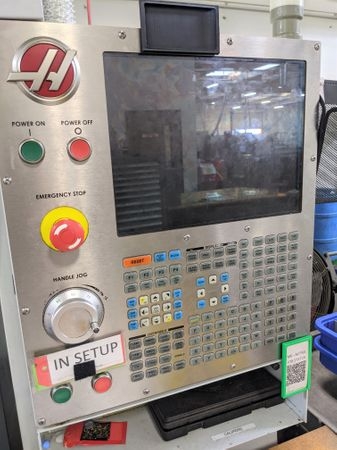

HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
HA5C-T 4th Axis 5C Indexer
(10) Cat 40 Tool Holders
4th Axis Drive
(2) Vices
Chip Auger
W.I.P.S Wireless Probe System
Coordinate Rotation and Scaling
Ethernet
WiFi
M-Code
Early Power Failure Detection Module
Rigid Tapping
Spindle Orientation
1GB Memory
User-Definable Macros
Visual Part Programming System
Probe
Programmable Coolant
4th Axis Rotary Table
HA5C-T 4th Axis 5C Indexer
(10) Cat 40 Tool Holders
4th Axis Drive
(2) Vices
Chip Auger
W.I.P.S Wireless Probe System
Coordinate Rotation and Scaling
Ethernet
WiFi
M-Code
Early Power Failure Detection Module
Rigid Tapping
Spindle Orientation
1GB Memory
User-Definable Macros
Visual Part Programming System
