Seller Needs:
$50,500|
109
|
1

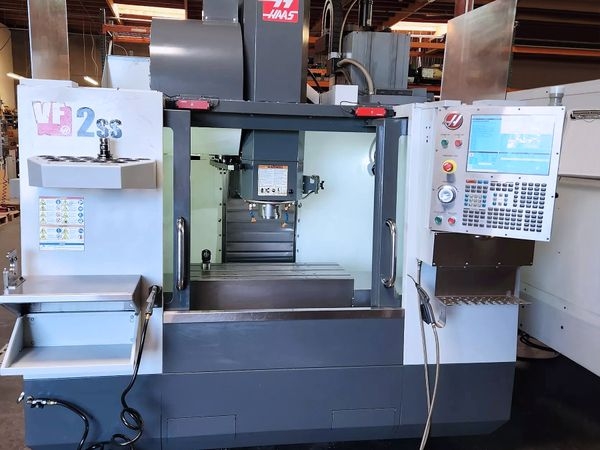

This 2014 HAAS VF2SS is a solid machine tool designed to meet the needs of a busy fabrication shop. It offers high-speed performance with its integrated spindle, which enables swift and precise machining tasks.
Built with a...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Chip-to-Chip: 3.6 s
Coolant Cap: 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 9,200 LBS
220V 3 PHASE
MACHINE IS UNDER POWER AND AVAILABLE FOR INSPECTION
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Chip-to-Chip: 3.6 s
Coolant Cap: 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 9,200 LBS
220V 3 PHASE
MACHINE IS UNDER POWER AND AVAILABLE FOR INSPECTION
Options:
HAAS CNC Control
Probe
24 TOOL SIDEMOUNT ATC
WIRELESS PROBING SYSTEM
HIGH SPEED MACHINING
CHIP AUGER
USB
RIGID TAPPING
COORDINATE ROTATION AND SCALING
Probe
24 TOOL SIDEMOUNT ATC
WIRELESS PROBING SYSTEM
HIGH SPEED MACHINING
CHIP AUGER
USB
RIGID TAPPING
COORDINATE ROTATION AND SCALING
Seller:
SaleG897
Location:
USA
