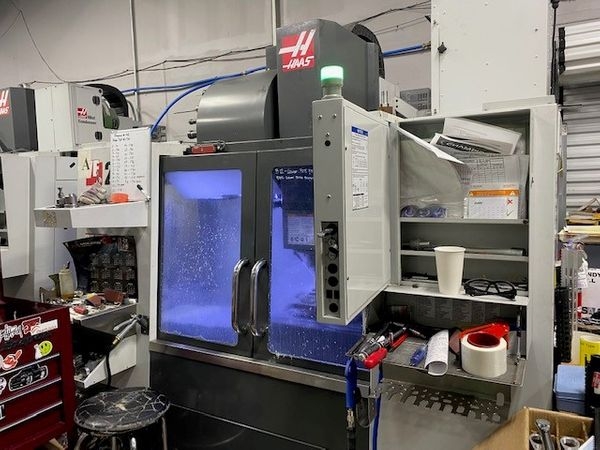

Pre-owned HAAS VF2SS 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Texas. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SS before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
Haas HRT 210 Rotary
Mist Collector
LOW Hours (1790 Power) (430 Cycle Start) (263 Feed Cut)
USB
$95,760 NEW
High Speed Machining
Chip Auger
90% 7075 Aluminum 10% 4140 and 316
Probe
Programmable Coolant
4th Axis Rotary Table
Haas HRT 210 Rotary
Mist Collector
LOW Hours (1790 Power) (430 Cycle Start) (263 Feed Cut)
USB
$95,760 NEW
High Speed Machining
Chip Auger
90% 7075 Aluminum 10% 4140 and 316
