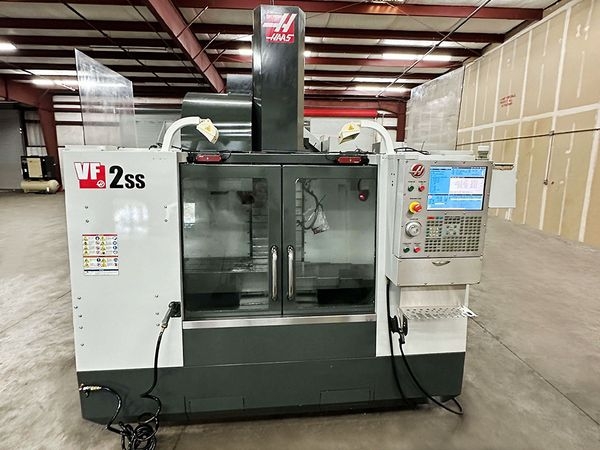

Pre-owned HAAS VF2SS 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in USA. This HAAS Ve...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
Air Gun
24 Side ATC
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
Air Gun
24 Side ATC
