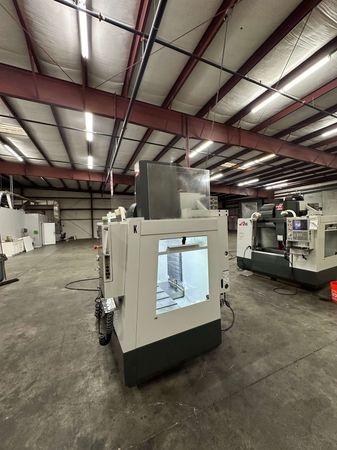

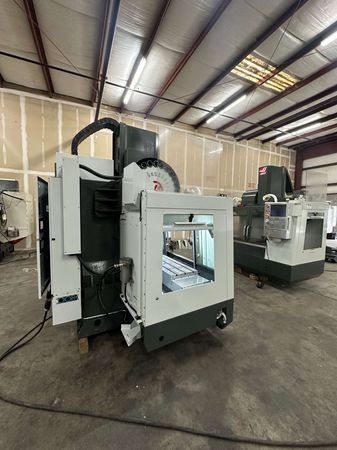

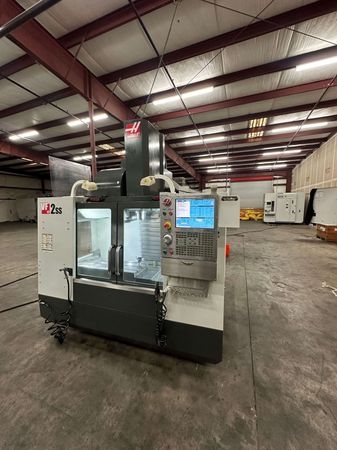

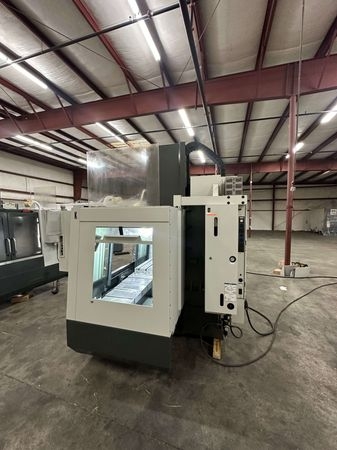

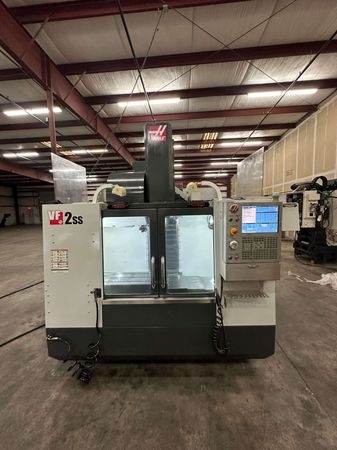

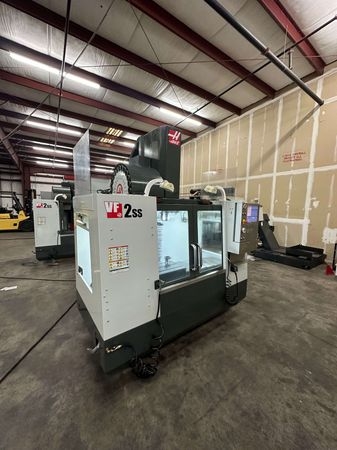

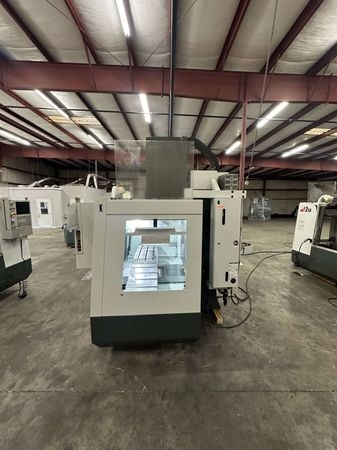

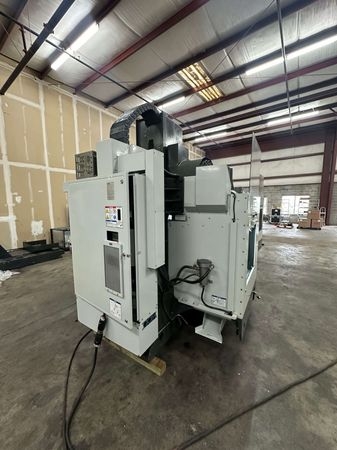

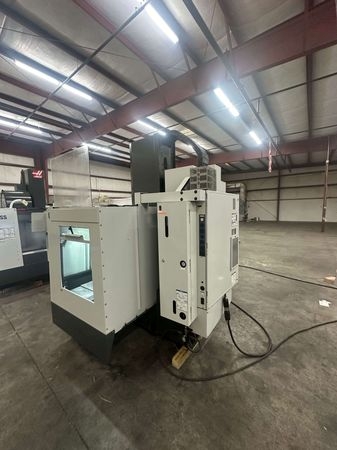

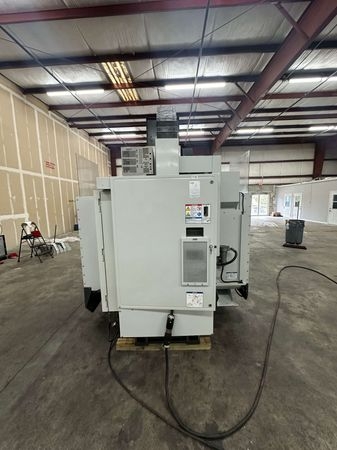

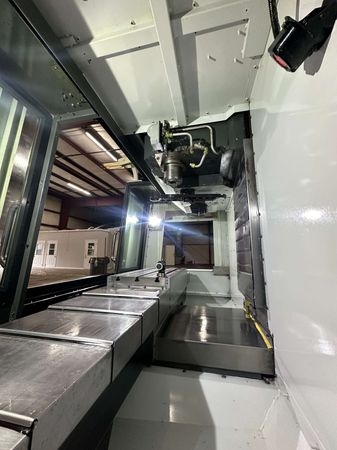

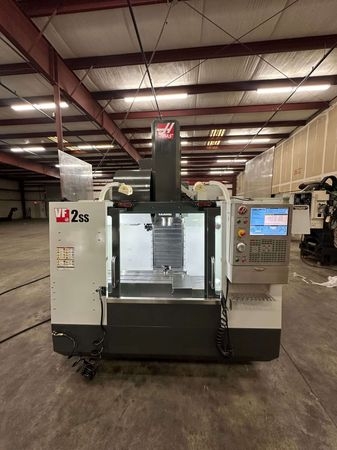

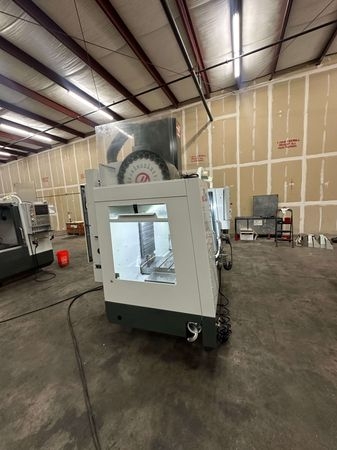

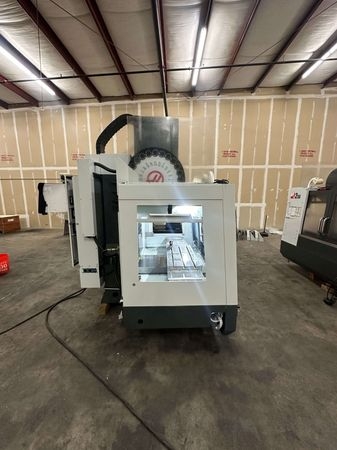

2015 HAAS VF2SS #9509

X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT

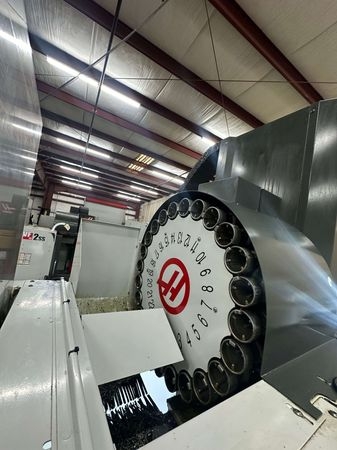

Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS

Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
High Speed Machining
