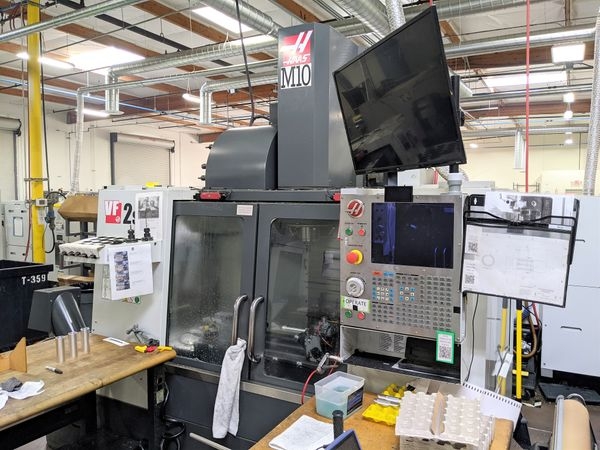

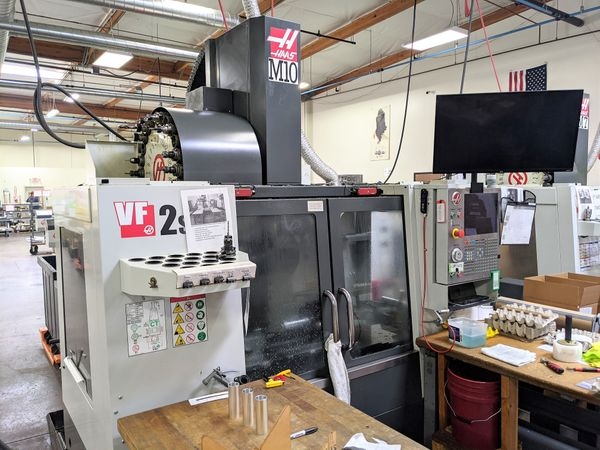

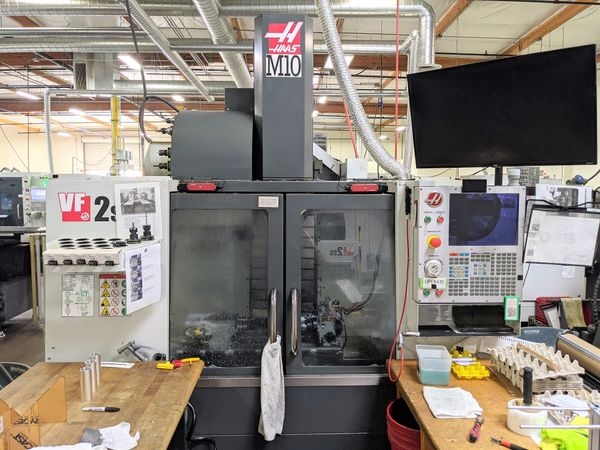

M10 - HAAS VF2SS 2016 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in USA. This HAAS Verti...Read More
Rigging:
$1,400
Specs:
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer Positions: 24 + 1 ATC
Tool Changer Style: Sidemount
Machine Dimensions: 106" x 101" x 101"
Machine Weight: 7,800 LBS
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer Positions: 24 + 1 ATC
Tool Changer Style: Sidemount
Machine Dimensions: 106" x 101" x 101"
Machine Weight: 7,800 LBS
Options:

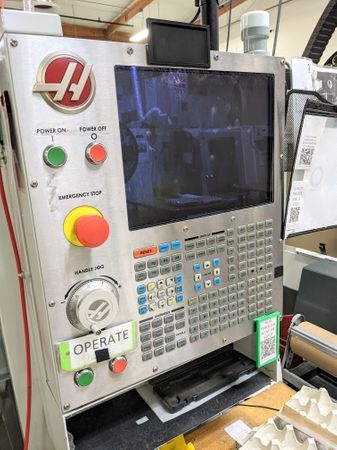

Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant

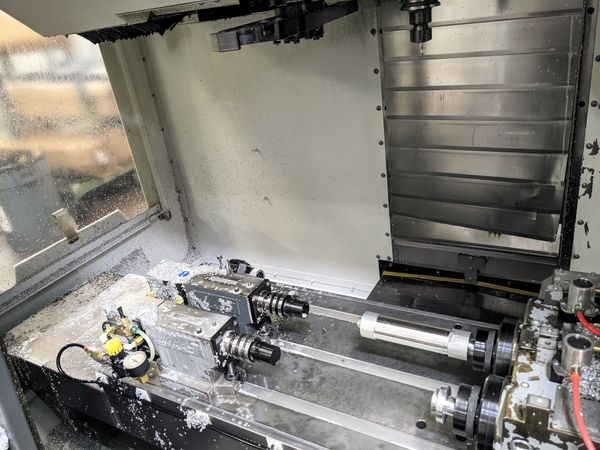

4th Axis Rotary Table
Haas HA5C2 Dual Collet Indexer Included
4th Axis Pre-Wire
W.I.P.S. Wireless Probe System
Ethernet
WiFi
Early Power Failure Detection Module
M-Code
Rigid Tapping
1GB Memory
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
Price New: $105,400 USD
Probe
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Haas HA5C2 Dual Collet Indexer Included
4th Axis Pre-Wire
W.I.P.S. Wireless Probe System
Ethernet
WiFi
Early Power Failure Detection Module
M-Code
Rigid Tapping
1GB Memory
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
Price New: $105,400 USD
