Machine Overview

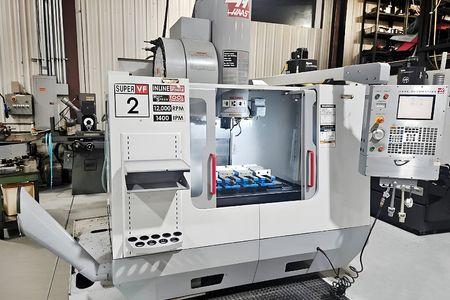

This 2018 HAAS VF2SS is a high-precision vertical machining center designed to tackle a range of complex machining tasks with ease. Known for its versatility, the model is suited for various applications to increase productivity in your shop.
The machine boasts a table size of 36 x 14 inches, capable of supporting a maximum load of 1,500 lbs. It features generous axis travels with an X-axis of 30 inches, Y-axis of 16 inches, and Z-axis of 20 inches, allowing for machining of larger parts without hassle. The spindle operates at speeds of up to 12,000 RPM, driven by a 30 horsepower motor and outfitted with a CAT40 taper. A robust 30+1 tool changer ensures seamless transitions between tools.
Rapid traverse rates are notable at 1,400 inches per minute across the X, Y, and Z axes, enhancing swift movement during operations. This machine comes equipped with features that maximize its capabilities, including the Haas HRC-210 Rotary for added rotary functionality and a 300 psi Thru Spindle Coolant system to promote optimal cooling during high-speed operations.
The machine incorporates WIPS, Renishaw's Wireless Probing system, which simplifies setup and ensures precise part and tool measurements. High Speed Machining (HSM) with software look ahead keeps machining smooth and uninterrupted. The unit also includes a chip auger and stainless steel way covers to keep debris away from working parts, ensuring smooth operations.
Additional features include a side mount tool changer with 30+1 capacity, enhanced chip removal through an upgraded rear chip washdown system complete with ball joint jets, and advanced software capabilities featuring rotation and scaling, macros, and rigid tapping. With connectivity options like Ethernet Networking, your operations are streamlined and accessible.
