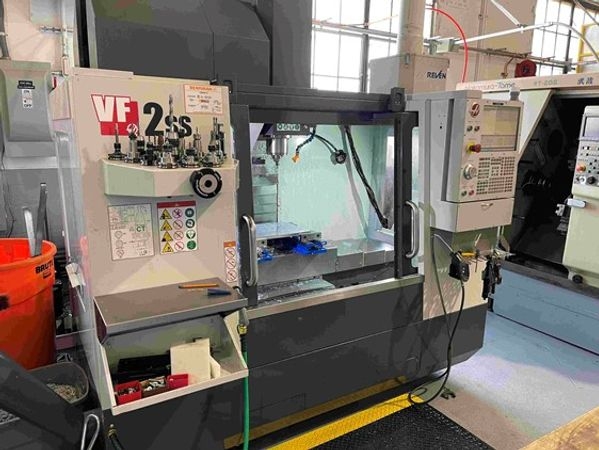

2018 HAAS VF2SS

Table Size: 36" x 18"
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer: 30 + 1

EQUIPPED WITH:
Haas NExtGen CNC Control
Haas TR-160Y 5-Axis Trunion Table
W.I.P.S. Wireless Intuitive Probe System
4th and 5th-Axis Pre-Wire
Programmable Coolant

Control Options Include:
High Speed Machining
Visual Parts Programming,
Coordinate Rotation & Scaling
Rigid Tapping
1GB Memory
User Definable. Macros
M19 Spindle Orientation


Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS

Machine Making Satellite Component Parts
High End Aerospace Facility

HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
5 Axis
Haas TR-160Y 5-Axis Trunion Table
W.I.P.S. Wireless Intuitive Probe System
4th and 5th-Axis Pre-Wire
High Intensity Lighting
Control Options Include: High Speed Machining, Visual Parts Programming,
Coordinate Rotation & Scaling, Rigid Tapping, 1GB Memory, User Def. Macros,
M19 Spindle Orientation and MORE!!!!
See Photo for Other Options Purchased!!
