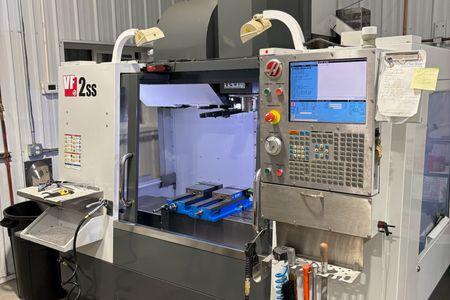

Pre-owned HAAS VF2SS 2019 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in Alabama. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SS before it's gone.
Notify Me:
Rigging:
$1,500
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
5th Axis TRT160 Table
Rotation and Scaling
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
4th Axis Drive
5th Axis Drive
1GB Memory
Wireless Networking
Compensation Tables
Through Spindle Coolant
15,000 RPM
Low Hours: 181 Feed Cutting Hours
30 ATC
Pulse Jet Oil Injection System
Macros
Chip Auger
Auto Door
Rotary Brake Booster
MSRP $153,200 today
MSRP $142,275 in 12/2019
MFG Date 12/2019
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
5th Axis TRT160 Table
Rotation and Scaling
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
4th Axis Drive
5th Axis Drive
1GB Memory
Wireless Networking
Compensation Tables
Through Spindle Coolant
15,000 RPM
Low Hours: 181 Feed Cutting Hours
30 ATC
Pulse Jet Oil Injection System
Macros
Chip Auger
Auto Door
Rotary Brake Booster
MSRP $153,200 today
MSRP $142,275 in 12/2019
MFG Date 12/2019
