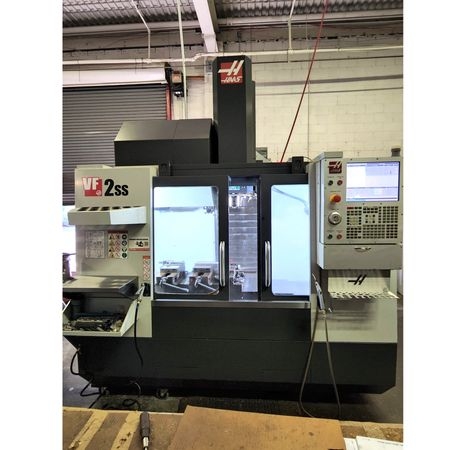

Pre-owned HAAS VF2SS 2020 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Cente...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Programmable Coolant
Pre-Wired for 4th Axis
Renishaw Probe
Visual Parts Programming System
Chip Auger
Auto Air Gun
Probe
Programmable Coolant
Pre-Wired for 4th Axis
Renishaw Probe
Visual Parts Programming System
Chip Auger
Auto Air Gun
