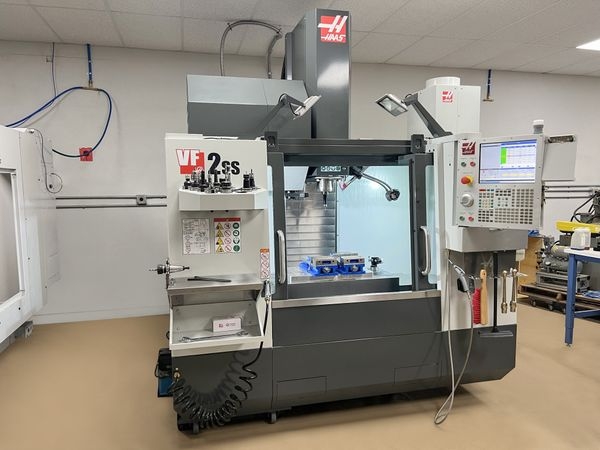

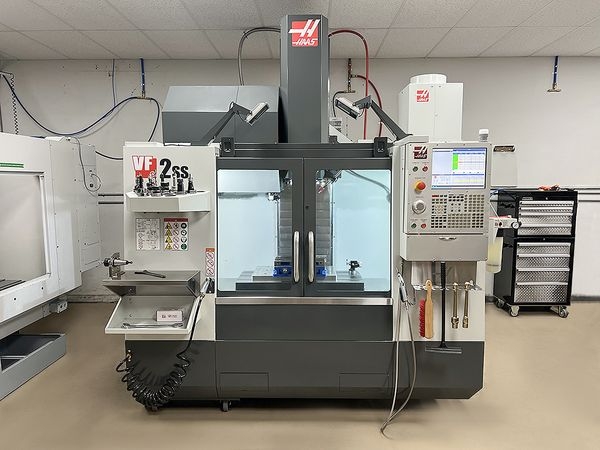

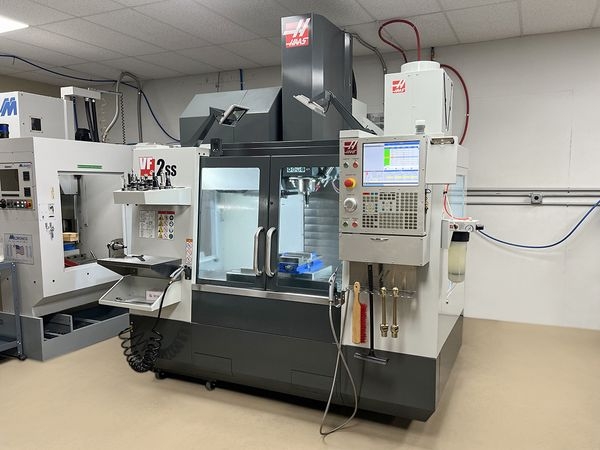

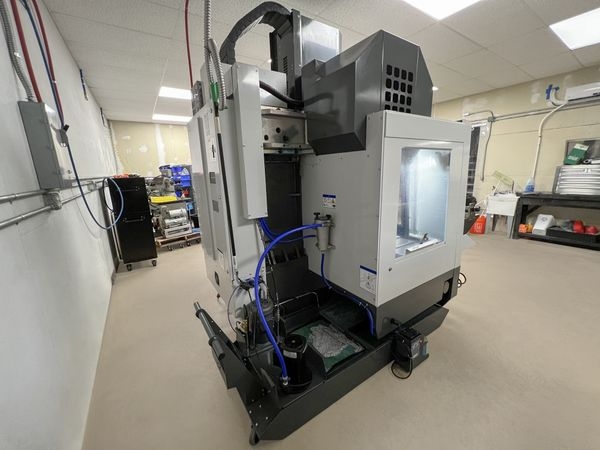

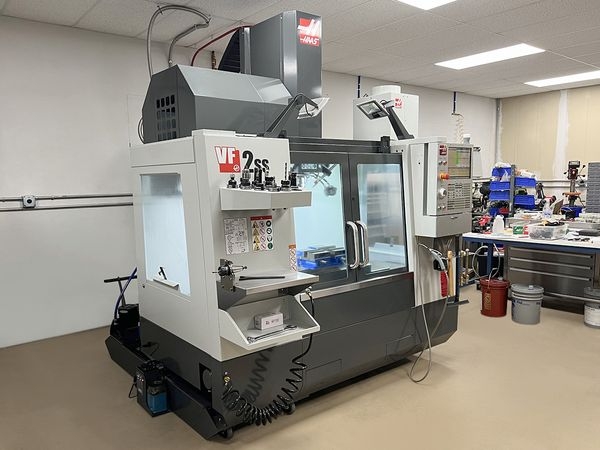

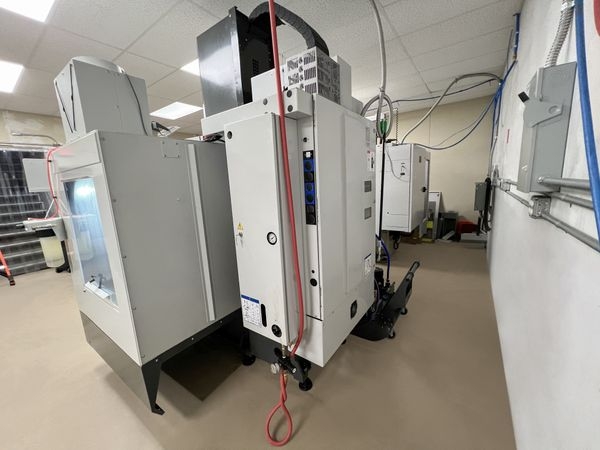

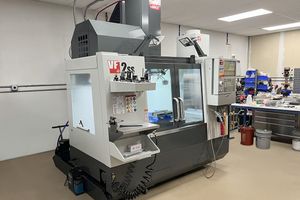

2019 HAAS VF2SS #8105

X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)

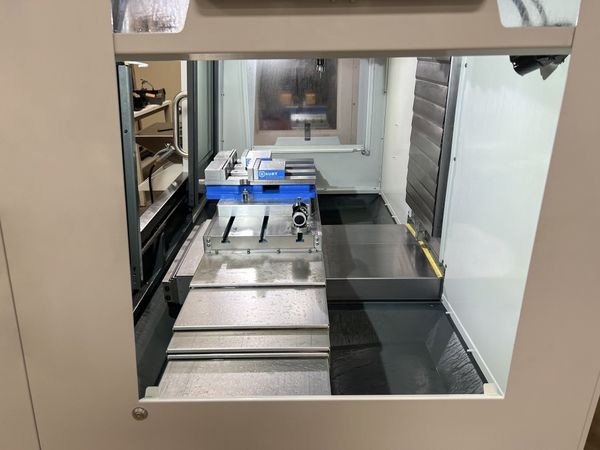

Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS

Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Wireless Intuitive Probing System ($5,795)
Through-Spindle Coolant, 300 PSI ($6,295)
Automatic Air Gun ($1,395)
Enclosure Exhaust System ($1,995)
High-Intensity Lighting ($1,095)
Minimum Quantity Lubrication System ($2,195)
Programmable Coolant Nozzle ($2,095)
Through-Tool Air Blast ($1,395)
High Speed Machining ($3,495)
Coolant Tank Oil Skimmer ($695)
