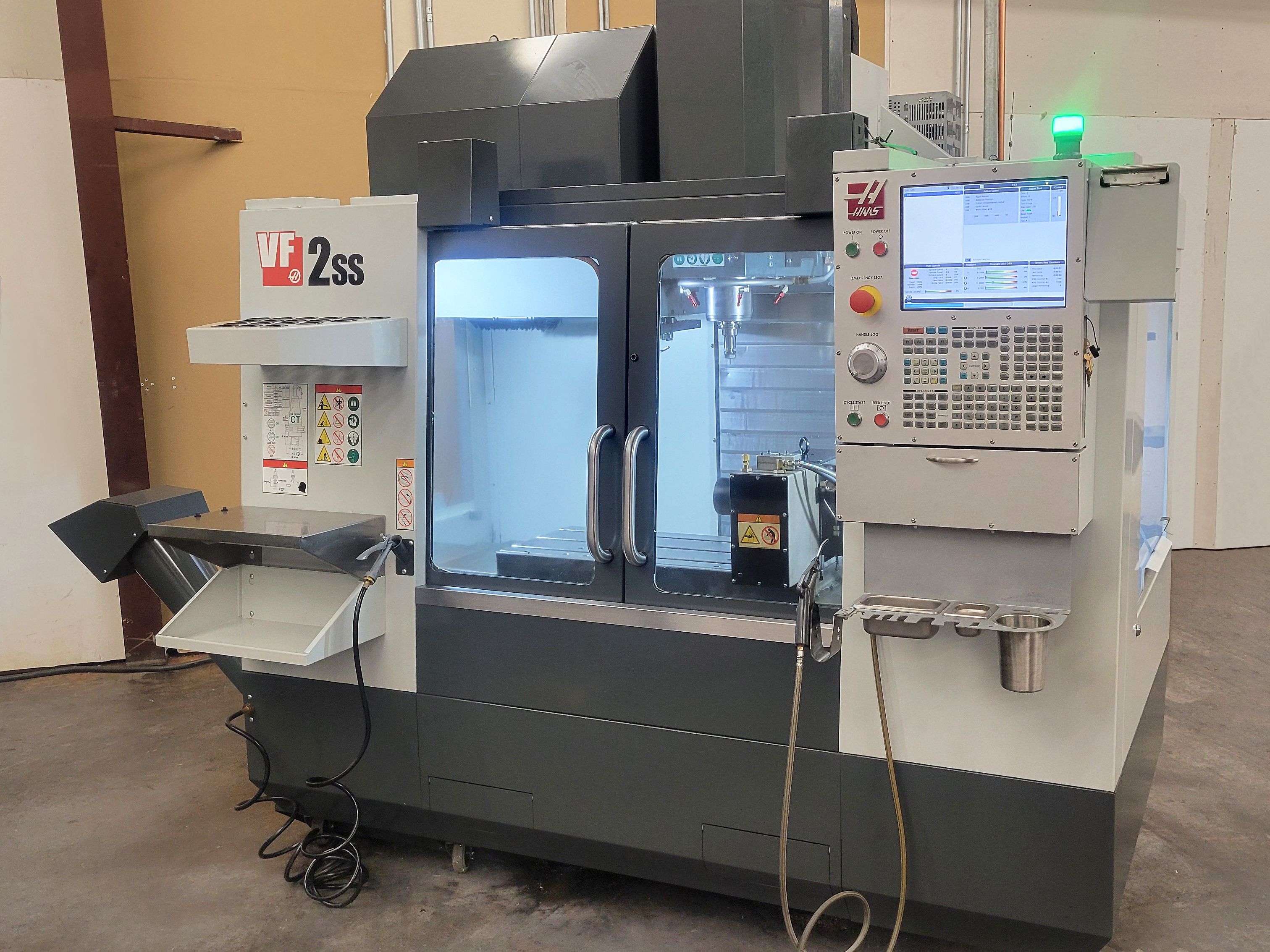

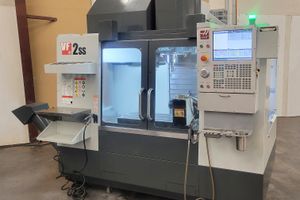

This machine is in exceptional condition and has had a very easy life cutting aluminum. Hard to find a nicer example anywhere. We are the original owners and can answer any questions you may have. The table has always had a fixture plate over it which has kept it well protected. There are no nicks, drills, or dents in the table. Only some light shadowing from the fixture as you can clearly see. When judging a used machine always ask the seller to show you the topside. If someone regularly makes the effort to clean the difficult to reach topside its an indication they take maintenance seriously.
The 4th axis rotary is a model HRT-A6 with a pneumatic 16C collet closer. The collet closer is actuated through the machine control for fully automated operation. We will load 36"-48" long bars and let the control automate the bar feeding for continuous multi-hour and overnight operation. The collet chuck can be easily swapped for a regular T-Slot face plate if that's what your work requires. The 16C collet has a max capacity of 1-5/8" round. If you swap the 16C for a 3 jaw chuck then you can use the full 2" through spindle capacity.
Compare the cost of a new VF2SS machine on the HAAS website configured exactly like this one:
• Machine Base Price $79,995
• 4th axis drive and wiring $3,595
• Multi-Auger Chip Removal System $7,895
• Coolant Tank Oil Skimmer $895
• Auto-Door $2,395
• Rotary Table HRT-A6 $17,595
• Work Holding 16C Collet Chuck w/ Closer $5,895
• Price for new: $118,265
• Ours PRICED at $79,900
We are selling two identical machines which we purchased together. See our second listing. Buy them both for a better deal.
Machines are under power and we encourage you to view them before purchase. Viewing by appointment only. We can recommend a local rigger to load onto your truck.
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size:
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Spindle Nose to Table: 4" - 24"
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Dimensions:
Weight: 7,800 LBS
