Seller Needs:
$79,500|
40
|
0

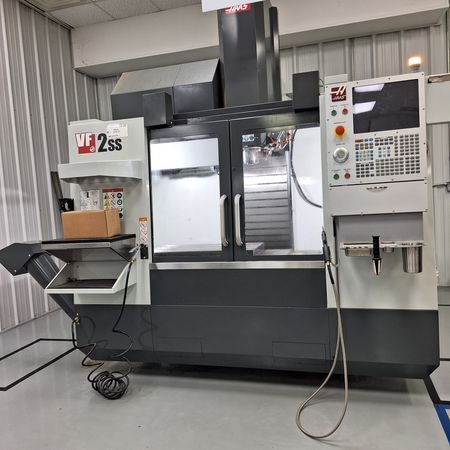

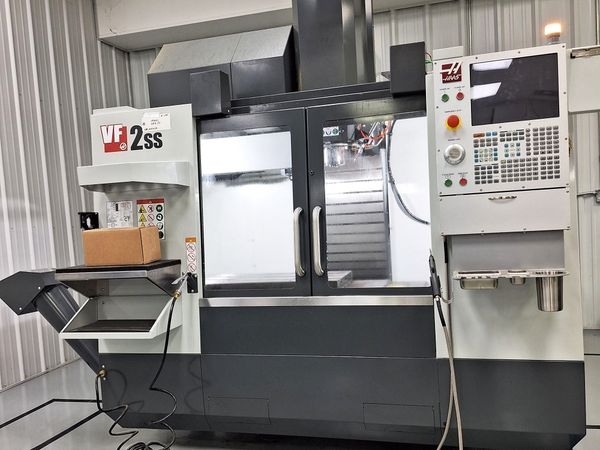

Pre-owned HAAS VF2SS 2023 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in Tennessee. This H...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4" - 24"
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Table Size: 36" x 14"
Weight: 8,300 LBS
Max Table Load: 1,500 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4" - 24"
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Table Size: 36" x 14"
Weight: 8,300 LBS
Max Table Load: 1,500 LBS
Options:
Haas Next Gen CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
HRT210 4th Axis Rotary Table
Auto Air Gun
Auto Door
Chip Auger
Probe
Programmable Coolant
4th Axis Rotary Table
HRT210 4th Axis Rotary Table
Auto Air Gun
Auto Door
Chip Auger
Seller:
JamiM681
Location:
TN
