Machine Overview
Max table load: 1,500 lbs
X axis travel: 30"
Y axis travel: 16"
Z axis travel: 20"
Spindle taper: CAT #40
Spindle speed: 12,000 RPM
Spindle motor: 30 HP - Direct Drive
Spindle nose to table top: 4" - 24"
Number of tool positions: 30 + 1 Position Side Mount
Max tool weight: 12 lbs.
Rapid feed rate (x,y,z): 1,400 IPM
Cutting feed rate: 0.1 - 833 IPM
Machine dimensions: 88" x 93" x 106"H
Machine weight (approximately): 9000 lbs.
Probe
Coolant Thru Spindle
Prepped ONLY for Coolant Through the Spindle
Haas Wireless Probing Package with Tool & Part Probes
Auger Style Chip Conveyor
Spindle Orientation
Coolant System with Tank BUT NO COOLANT PUMP

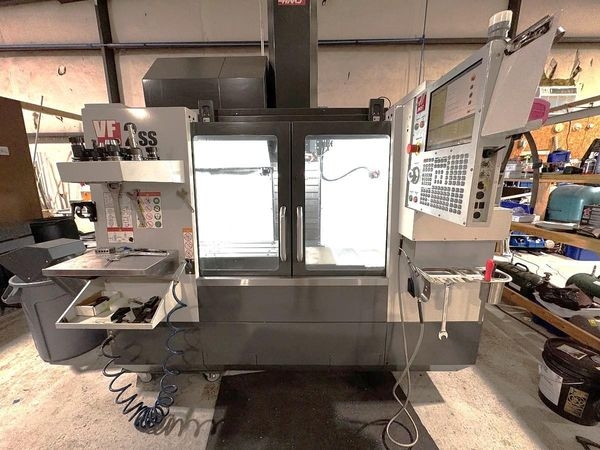

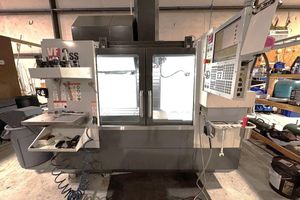

This 2023 Haas VF2SS CNC vertical machining center is a lightly used machine with less than 300 cutting hours recorded. Notably equipped with Haas probing, this particular model is prepped for through-spindle coolant (CTS) and includes a chip auger for efficient waste management. It also features a 4th axis drive, enhancing its versatility for various machining tasks.
