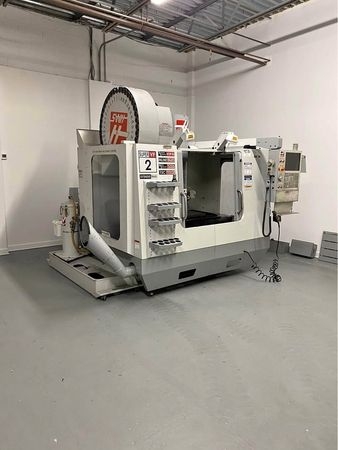

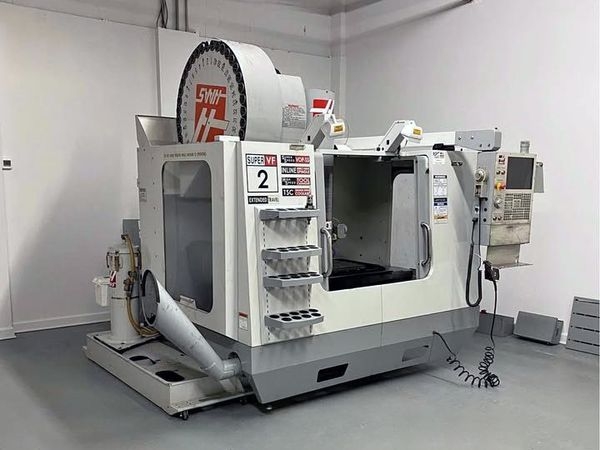

Pre-owned HAAS VF2SSYT 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical ...Read More
Seller Needs:
Payment:
Specs:
Y Axis Travel: 20"
X Axis Travel: 30"
Z Axis Travel: 20"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CT40 BT40 HSKA63
Tool Changer: 40 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 36" x 18"
Weight: 7,800 LBS
Max Table Load: 1,500 LBS
X Axis Travel: 30"
Z Axis Travel: 20"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CT40 BT40 HSKA63
Tool Changer: 40 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 36" x 18"
Weight: 7,800 LBS
Max Table Load: 1,500 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th axis ready
5th axis ready
Upgraded 40 ATC
Auxiliary Coolant Filter
Remote Jog Handle
High Intensity Lighting
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th axis ready
5th axis ready
Upgraded 40 ATC
Auxiliary Coolant Filter
Remote Jog Handle
High Intensity Lighting
Seller:
BriaR973
Location:
USA
