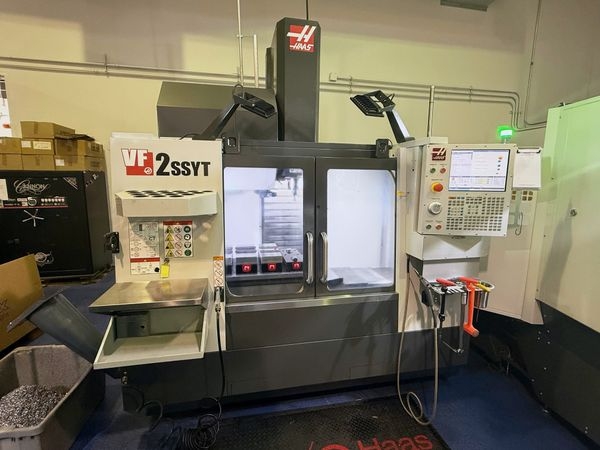

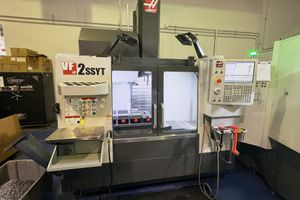

2022 HAAS VF2SSYT #14301

Y Axis Travel: 20"
X Axis Travel: 30"
Z Axis Travel: 20"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 36" x 18"
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Max Table Load: 1,500 LBS

Build Date: 11/2022

Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Haas Next Gen CNC Control
300 PSI Through Spindle Coolant
3+ 1 Fully Integrated Pallet Pool
CNC Control Cabinet Cooler
Chip Auger
High Intensity Lighting
High Speed Machining
Chip Tray Filter Kit
