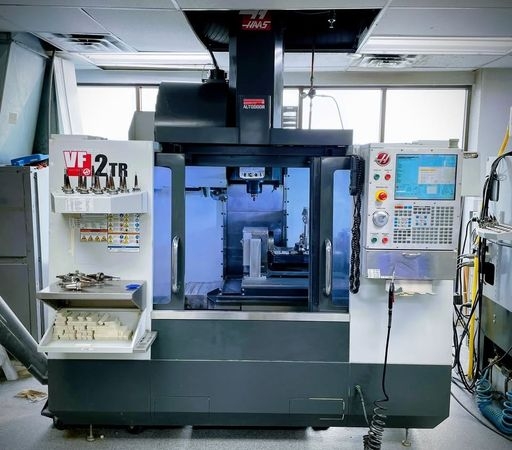

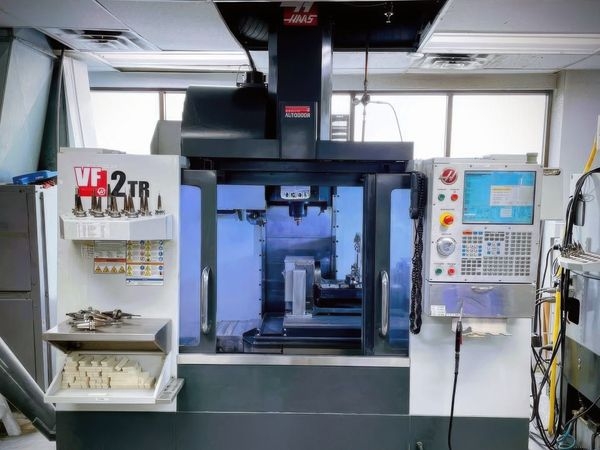

2010 HAAS VF2TR

X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 30,000 RPM
Spindle Taper: BT30
Tool Changer: 24 ATC
Max Torque 90ft-lbf
Max Cutting 650 ipm
Platter Diameter 6.3"
Max Weight on Platter 80 lb
Max Part Swing 18"
T-Slot Width 0.625"
Number of Std T-Slots 6
Pilot Bore Depth 4.63"
Rapids on A 80 °/sec
Rapids on B 80 °/sec
Max Cutting A 33 °/sec
Max Cutting B 33 °/sec
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Length 11"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Weight: 8,300 LBS

HAAS CNC Control
4th Axis Rotary Table
5 Axis
30K RPM BT30 Spindle
TR160 Trunnion
High Speed Machining
Auto Doors
Networking
Rotation and Scaing
Rigid Taping
Remote Jog Handle
Never touch metal, machined plastic its life.
Chip Auger
