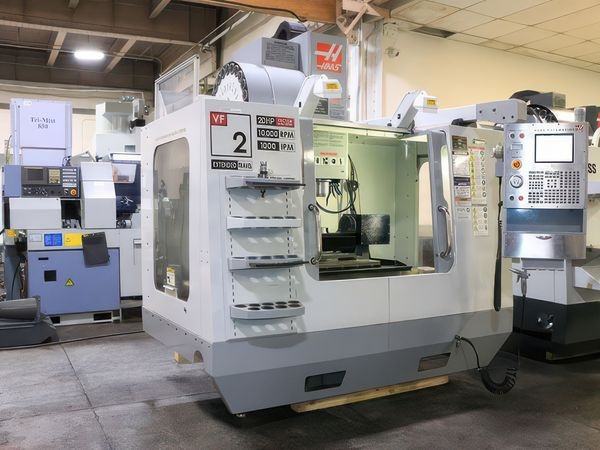

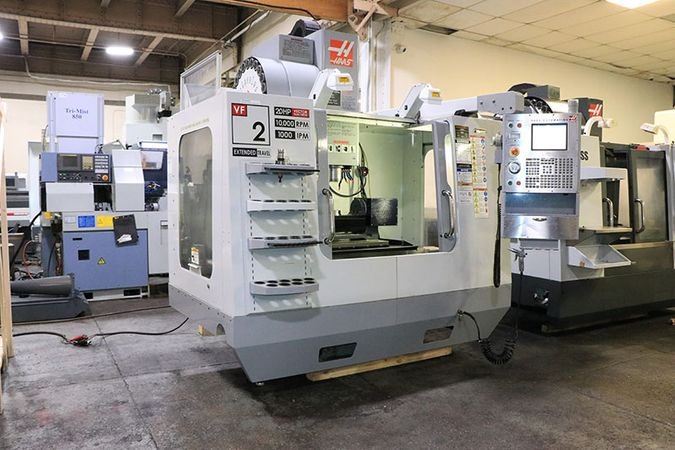

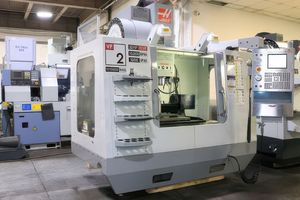

2006 HAAS VF2YT

Table Size: 36" x 18"
Max Table Load: 3,500 LBS
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Speed: 10,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Tool Changer: 24 + 1 ATC
Tool Changer Style: Sidemount

EQUIPPED WITH:
Haas CNC Control w/ CRT
W.I.P.S Intuitive Probe System
High Intensity Lighting
30 H.P. Vector Drive
4th Axis & 5th Axis Pre-Wire
Control Options Include:
High Speed Machining, Quick Code, Spindle Orientation
Rigid Tapping, Coordinate Rotation & Scaling

INCLUDES:
2010 HAAS TR160 5th Axis Trunnion Table

Platter Diameter: 6.3" (160 mm)
A-Axis (TILT): + / -120°
B-Axis (ROTATION): 360° CONTINUOUS
Max Workpiece Weight: 80 lb (36 kg) Includes Fixture
Max Part Swing: 10.5" (267 mm)

HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
5 Axis
Extended Y-Axis Travels
10,000 RPM Spindle
Haas TR-160 5th Axis Trunnion Table
W.I.P.S. Wireless Probe System
High Intensity Lighting
