2014 HAAS VF3

ID:11791
Brand:HAAS
Model: VF3
Year:2014
Category:Vertical Machining Center
Location:USA

Located In USA

1000-2000 Hours

Hello!

Machine Overview

Specs:

X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size:
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Dimensions:
Weight: 11,720 LBS

Options:

Probe
Chip Conveyor
tooling, and tooling cart $2000-3000 worth

Description:

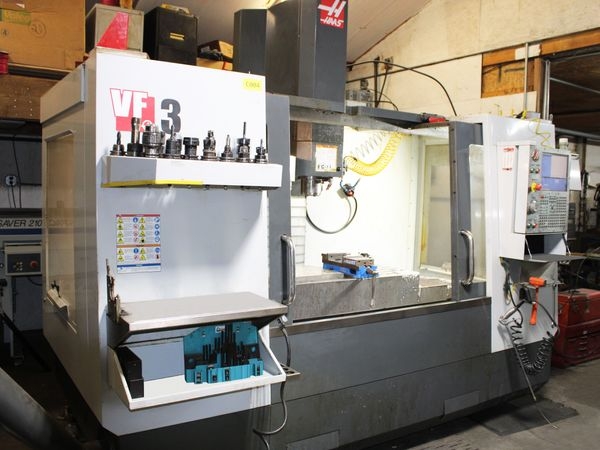

Pre-owned HAAS VF3 2014 Vertical Machining Center. This Vertical Machining Center has 1000-2000 cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF3 before it's gone.
