Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size:
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Dimensions:
Weight: 11,720 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Description:

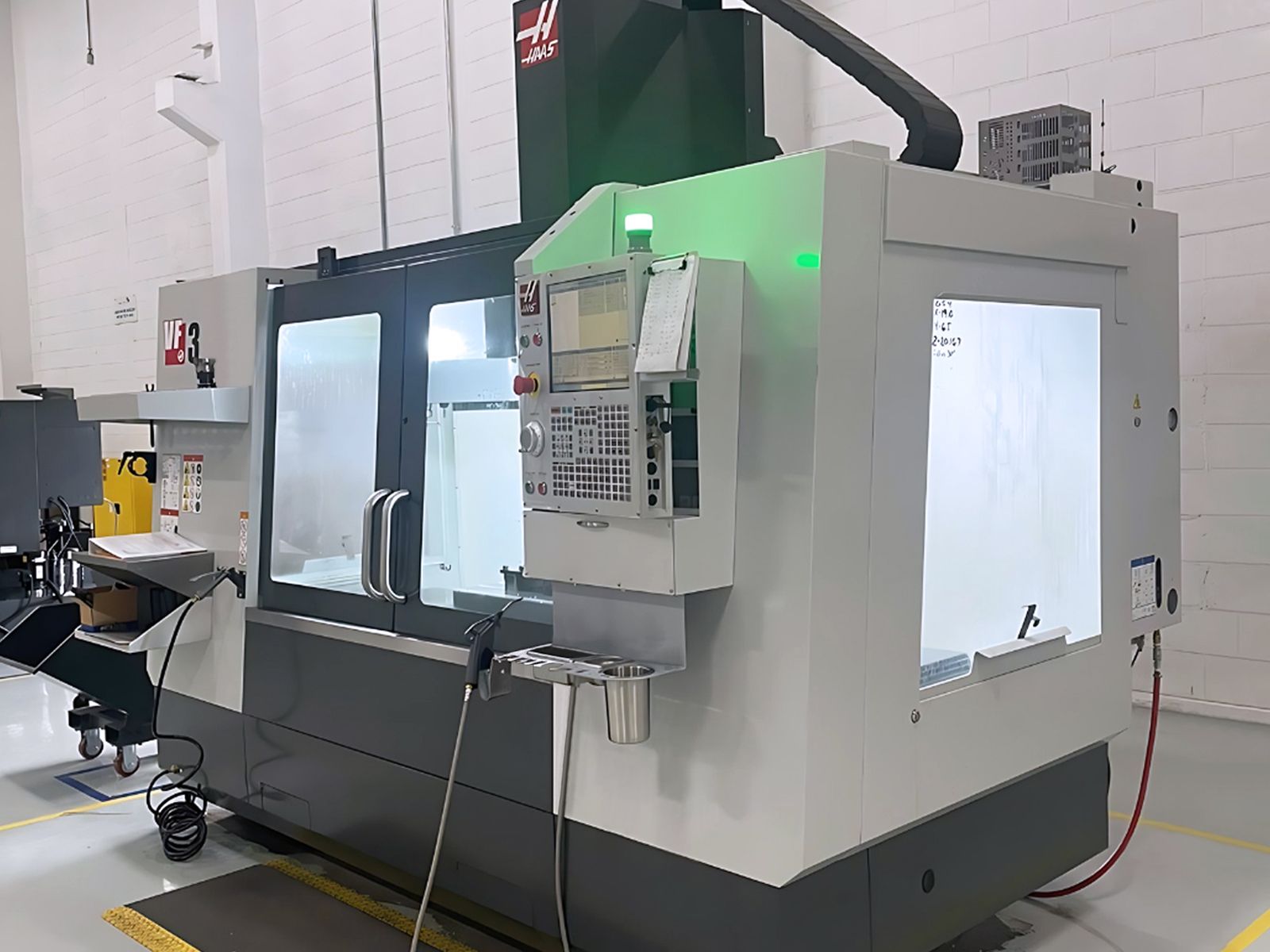

This 2022 HAAS VF3 Vertical Machining Center offers high-quality features for precision machining tasks. Equipped with the Haas Next Gen CNC Control, this machine ensures smooth and intuitive operation. This user-friendly system allows operators to manage complex tasks with ease, providing great control over the machining process.

Among its upgraded features, you'll find a Probe which simplifies setup and increases accuracy when measuring parts. This allows for precise adjustments directly through the control system, ensuring high precision with minimal effort.

The included Chip Conveyor efficiently removes chips and debris, maintaining a clean work area. This feature contributes to a seamless workflow and helps prevent any blockages that might occur during the machining process.

This model is also fitted with Coolant Thru Spindle, which provides effective cooling directly to the cutting area. This helps in prolonging tool life and enhances the finish quality of the workpieces by keeping them cool during intense operations.

Additionally, the Programmable Coolant feature allows you to set the coolant flow to match specific machining tasks. This flexibility makes it easier to handle a wide range of materials and cutting operations with optimal results.

The HAAS VF3 is built to accommodate a variety of applications, making it a versatile choice for shops needing a reliable machine. Its modern features and upgrades ensure that it can handle both simple and complex jobs with precision and efficiency.
