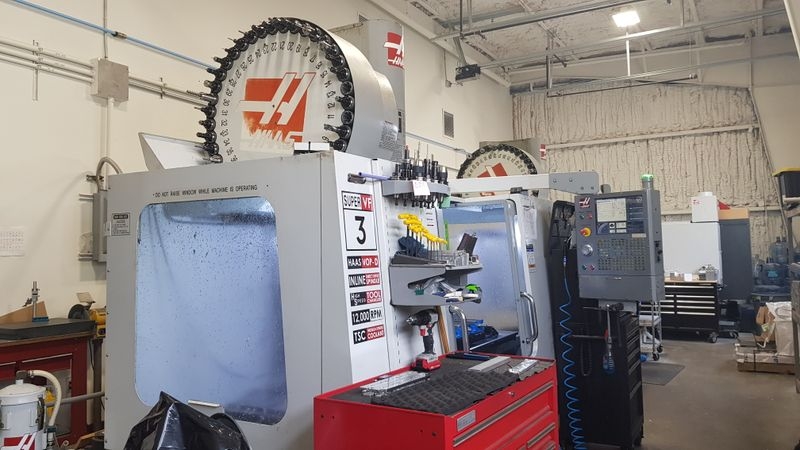

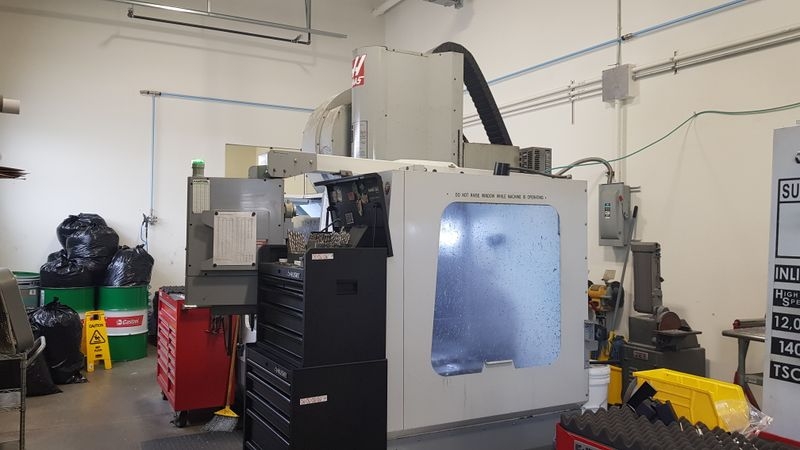

Pre-owned HAAS VF3SS 2007 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Cente...Read More
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 48" x 18"
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting 833 ipm
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3923 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Equipped With:

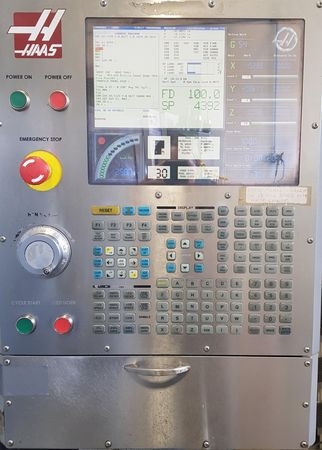

Haas CNC Control
W.I.P.S Wireless Probe System
Thru Spindle Coolant
Remote Jog Handle
4th & 5th Axis Pre-wire
Control Options Include:
High Speed Machining, Rigid Tapping,
Coordinate Rotation & Scaling, Spindle Orientation,
Macros, Quick Code, IPS.
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 48" x 18"
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting 833 ipm
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3923 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Equipped With:
Haas CNC Control
W.I.P.S Wireless Probe System
Thru Spindle Coolant
Remote Jog Handle
4th & 5th Axis Pre-wire
Control Options Include:
High Speed Machining, Rigid Tapping,
Coordinate Rotation & Scaling, Spindle Orientation,
Macros, Quick Code, IPS.
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
40+1 ATC
Chip Auger
Probe
Coolant Thru Spindle
40+1 ATC
Chip Auger
