Seller Needs:
$44,000|
1002
|
3

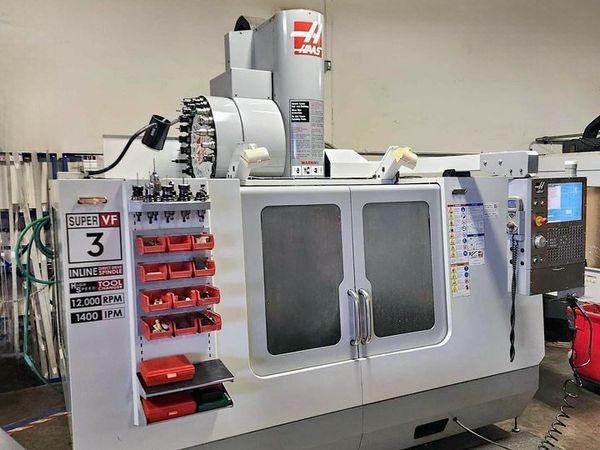

This 2008 HAAS VF3SS Vertical Machining Center is a multi-faceted equipment designed to improve any machining line or workspace requiring precision and variety. Its features include a Probe, Programmable Coolant, Sidemount To...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Options:
Probe
Programmable Coolant
Sidemount Tool Changer
Remote Jog Handle
High Intensity Lighting
Programmable Coolant
Sidemount Tool Changer
Remote Jog Handle
High Intensity Lighting
