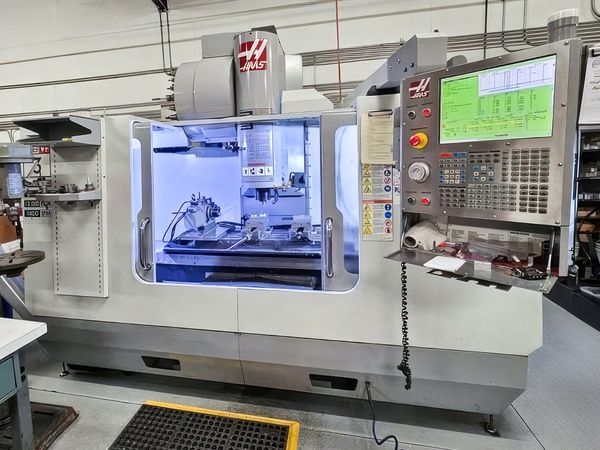

This 2008 HAAS VF3SS is an impressive machining center designed for precise and versatile operations. This used machine combines robust performance with a variety of useful features to meet your production needs.
Equipped wi...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 48" x 18"
Dimensions: 131" x 92" x 101"
Weight: 15,000 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 48" x 18"
Dimensions: 131" x 92" x 101"
Weight: 15,000 LBS
Options:
HAAS CNC Control
Chip Conveyor
Programmable Coolant
24+1 Position Side Mounted Tool Changer
Wired for 4th Axis
Rigid Tapping
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Programmable Coolant Nozzle
55 Gallon Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Chip Conveyor
Programmable Coolant
24+1 Position Side Mounted Tool Changer
Wired for 4th Axis
Rigid Tapping
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Programmable Coolant Nozzle
55 Gallon Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Seller:
ScotA630
Location:
USA
