Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2"-29.2"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63"
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 48" x 18"
Dimensions: 118" x 96" x 100"
Weight: 12,500 LBS

**new x-axis ball screw 2025**
**new lube system 2025**
** z-axis ball screw 2022**

Owned since 2019
Options:
Haas Next Gen CNC Control
Programmable Coolant
Description:

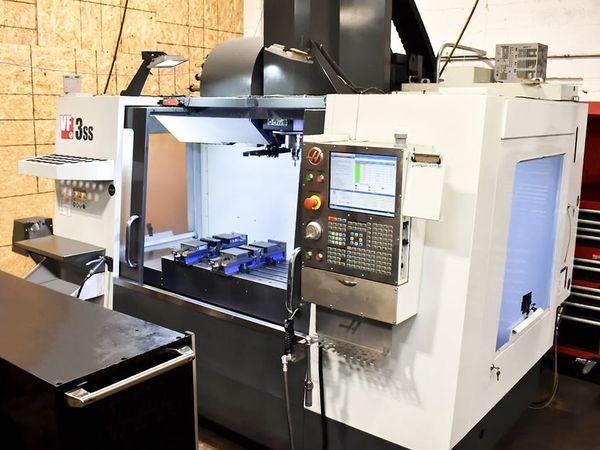

This 2016 HAAS VF3SS features advanced capabilities and has been a valuable piece of equipment since its acquisition in 2019. Equipped with NGC control, this machine is well-suited for a variety of machining tasks.

Key updates have been implemented to ensure optimal performance, including a brand-new x-axis ball screw and lube system installed in 2025, alongside a z-axis ball screw replacement done in 2022. These updates contribute to the smooth operation of the machine.

The HAAS VF3SS comes with 25 tool slots and is wired to support a 4-axis setup, offering versatility to meet your production needs. The flood coolant system with programmable coolant is an added feature, enhancing the machine's capabilities for complex machining processes.

Overhead lights are installed to ensure adequate visibility during operations. The machine also boasts a 12k spindle, providing the speed needed for a variety of materials and applications. Included are 40 taper spindle pull studs, ready for immediate use.

This machine has been in operation since 2019, offering proven performance. Its well-considered features make it an ideal choice for those seeking precision and reliability in machining tasks.
