Home / Vertical Machining Center / HAAS / VF3YT / 16220

Posted By MarkP815

BUY NOW

Please enter your email to see more photos.

Seller Needs:

$71,000

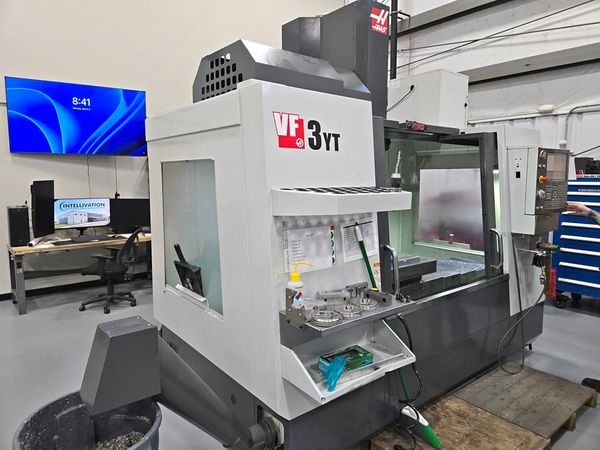

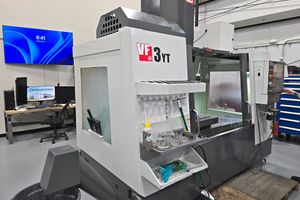

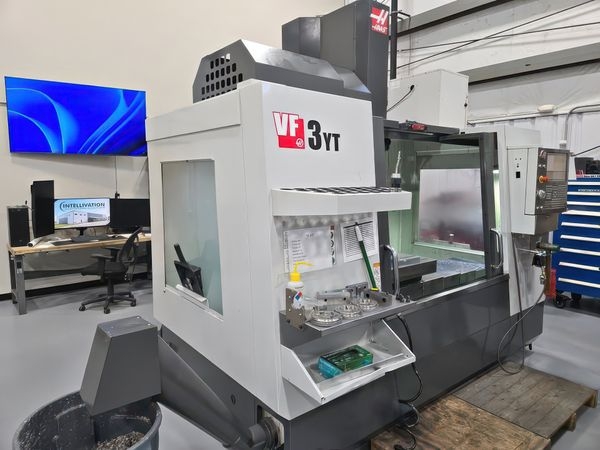

2017 HAAS VF3YT

ID:16220
Brand:HAAS
Model: VF3YT
Year:2017
Category:Vertical Machining Center
Location:Colorado

Located In Colorado

SHIPPING COST :

HAAS VF3YT AI Chat

Loading ...

Machine Overview

Specs:

X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: CAT 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 500 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 4100 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 54" x 25"
Dimensions: 156" x 102" x 109"
Weight: 16,500 LBS

*Mist collector and tool holders not included.

Options:

Haas Next Gen CNC Control
Probe
Programmable Coolant
High‑speed machining (HSM)
Rigid tapping
Wireless intuitive probing system
Ethernet + USB connectivity
Worklight and spindle load monitoring
Chip Management: Auger-style chip conveyor
Power Requirements: 3‑phase, 195–260 VAC

Description:

Please Select A Template To Add Content
