Seller Needs:
$66,000|
1732
|
1

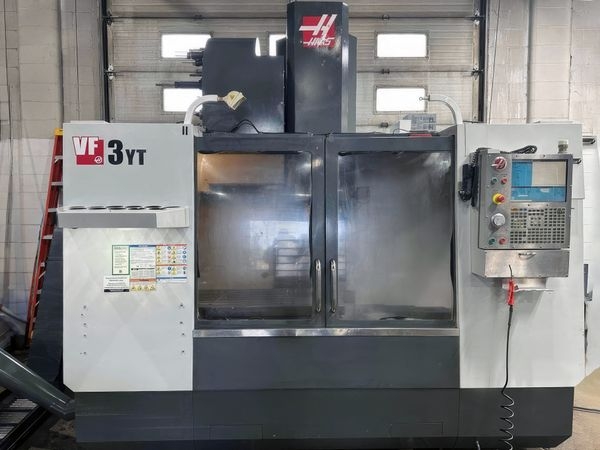

Pre-owned HAAS VF3YT-50 2011 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Torque 340 ft-lbf
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Weight 30 lbs
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 54" x 24"
Weight: 16,500 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Torque 340 ft-lbf
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Weight 30 lbs
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 54" x 24"
Weight: 16,500 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
Rigid Tapping
Remote Jog Handle
High Intensity Lighting
Chip Auger
2 Speed Gearbox
Auxiliary Coolant Filter
Coolant Thru Spindle
Programmable Coolant
Rigid Tapping
Remote Jog Handle
High Intensity Lighting
Chip Auger
2 Speed Gearbox
Auxiliary Coolant Filter
Seller:
FramN831
Location:
MN
