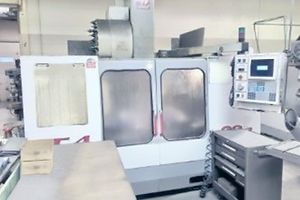

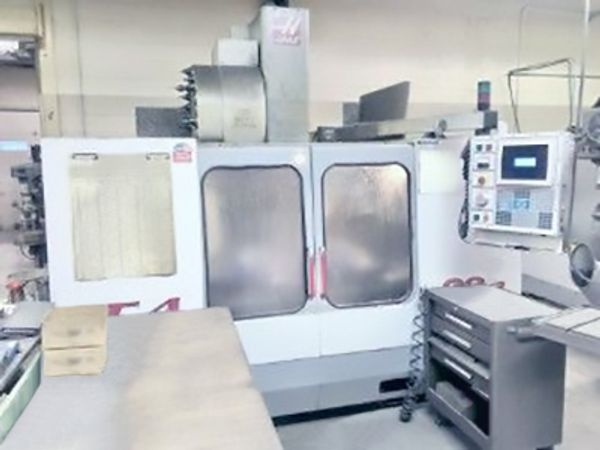

1999 HAAS VF4

X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Cutting: 650 ipm
Max Torque: 90 ft-lbf
Spindle Nose: 4.2" - 29.2"
Drive System: Inline Direct-Drive
Tool-to-Tool: 4.2 sec change
Coolant Capacity: 55 gal
Table Size: 52" x 18"
Weight: 11,720 LBS

Haas VF-4 CNC Vertical Machining Center Mill
52" x 18" Table (3,500 lbs Capacity)
50" x 20" x 25" Travels
20 HP 2-Speed Gear-Box Spindle (the High-Torque Gear-Drive)
10,000 RPM Spindle
24 + 1 Side-Mount Swing-Arm Tool Changer
Cat 40 Tool Taper
14,300 lbs Weight
Mfg. Date: 1999
Equipped With:
10K, 2-Speed High-Torque Gear-Box Spindle Option
4th Axis Servo Drive & Interface (no rotary table included)
Programmable Coolant Nozzle at spindle
Rigid Tapping
Remote Jog Handwheel
Chip Auger
Side-Mounted Swing-Arm ATC Option
*Only 5,000 Hours on Spindle and Motion Time! (see photo)
**Runs great & sounds great, under power here in my shop. No issues. A one-owner machine.
