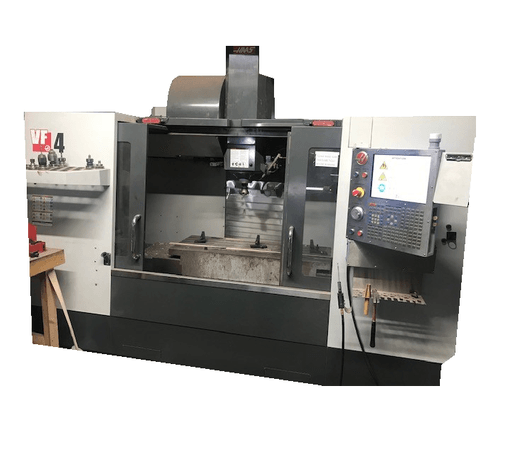

Pre-owned HAAS VF4 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Maine. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF4 before it's gone.
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 52" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30.00 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CT40 CT
Tool Changer: 20 ATC
Dimensions: 118 x 110 x 117
Weight: 12,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 52" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30.00 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CT40 CT
Tool Changer: 20 ATC
Dimensions: 118 x 110 x 117
Weight: 12,500 LBS
Options:
4th Axis HRT210 Rotary- Rebuilt
Chip Auger
Side Mount Tool Changer
5" Manual Tailstock
Coolant System Included
Extra Tooling
Chip Auger
Side Mount Tool Changer
5" Manual Tailstock
Coolant System Included
Extra Tooling
