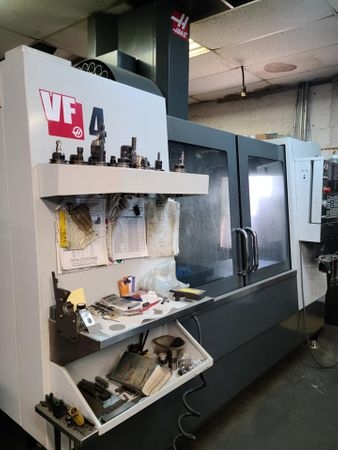

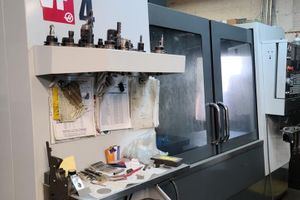

Pre-owned HAAS VF4 2016 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF4 before it's gone.
Notify Me:
Specs:
Full 5 Axis Haas Vertical CNC Mill
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 52" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2" - 29.2"
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Dimensions: 131" x 92" x 101"
Weight: 13,300 LBS
** $128,000 Paid New **
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 52" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2" - 29.2"
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Dimensions: 131" x 92" x 101"
Weight: 13,300 LBS
** $128,000 Paid New **
Options:
Haas CNC Control
Probe
5 Axis
Chip Auger
High Speed Machining
Probe riser block
TR160 Trunnion Table
Dynamic Work Offset
4th Axis Drive
5th Axis Drive
Probe
5 Axis
Chip Auger
High Speed Machining
Probe riser block
TR160 Trunnion Table
Dynamic Work Offset
4th Axis Drive
5th Axis Drive
