2017 HAAS VF4

ID:13240
Brand:HAAS
Model: VF4
Year:2017
Category:Vertical Machining Center
Location:USA

Located In USA

Hello!

Machine Overview

Specs:

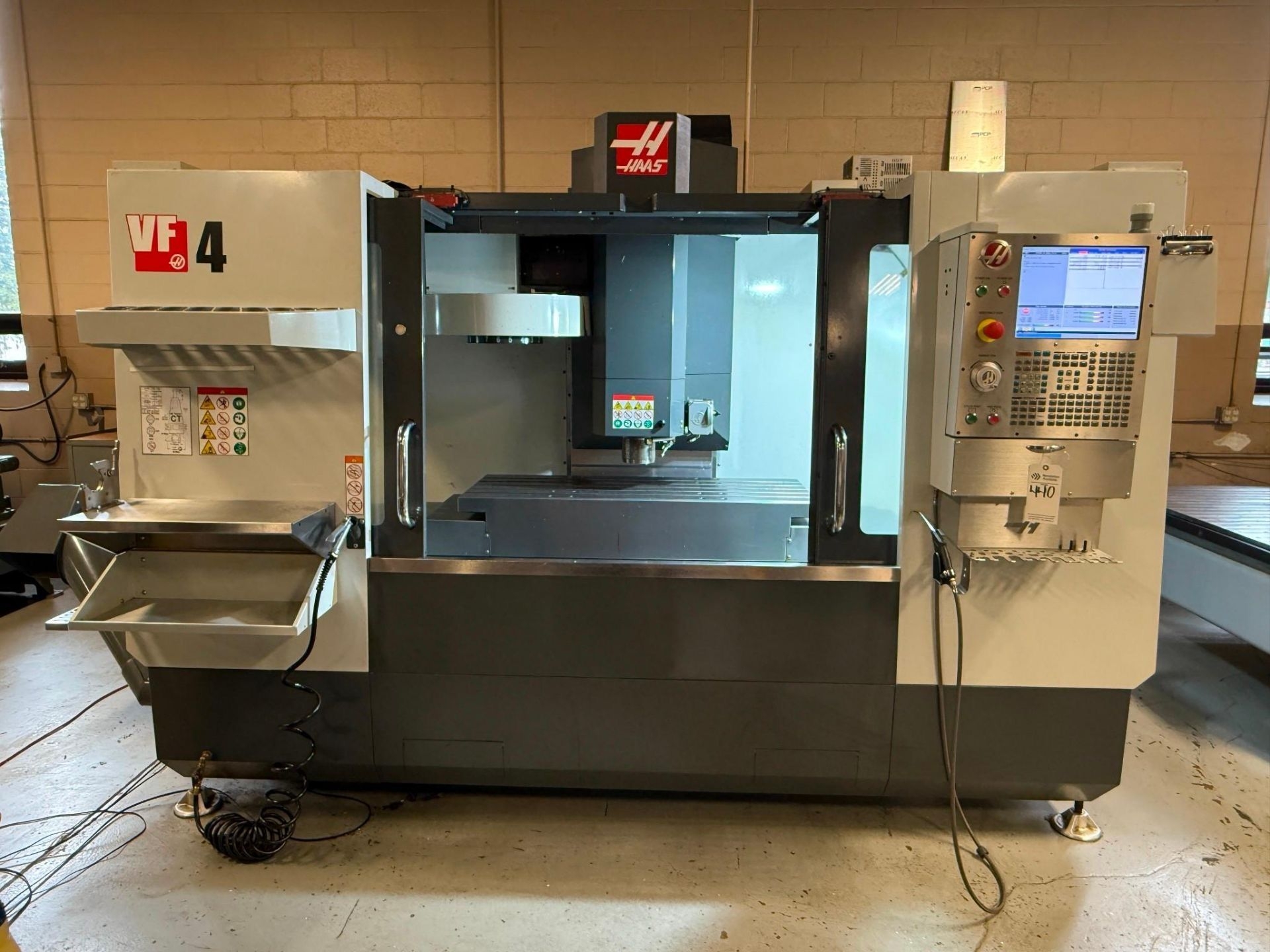

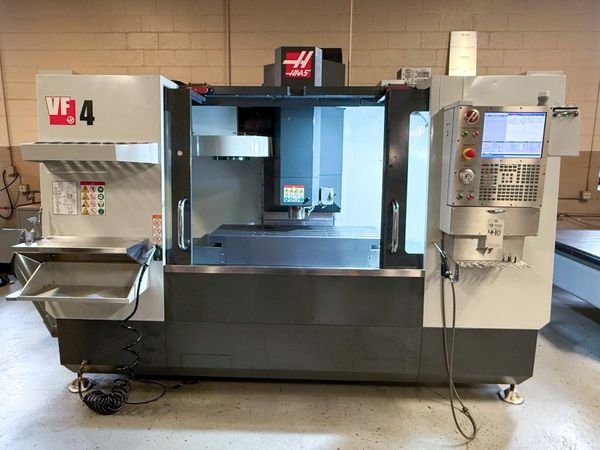

2017 HAAS VF-4 CNC VERTICAL MACHINING CENTER, VF4, LOW HOURS AND SUPER CLEAN

S/N 1137111
SPECIFICATIONS:
X AXIS TRAVEL: 50"
Y AXIS TRAVEL: 20"
Z AXIS TRAVEL: 25"
RAPID RATE X AXIS: 710 IPM
RAPID RATE Y AXIS: 710 IPM
RAPID RATE Z AXIS: 710 IPM
MAX TABLE LOAD: 3,500 LBS
SPINDLE MOTOR: 30 HP
SPINDLE SPEED: 8,100 RPM
SPINDLE TAPER: 40 CAT
TOOL CHANGER: 24+1 ATC
MAX THRUST X: 2550 LBF
MAX THRUST Y: 2550 LBF
MAX THRUST Z: 4200 LBF
MAX CUTTING: 650 IPM
MAX TORQUE: 90 FT-LBF
SPINDLE NOSE: 4.2" - 29.2"
TOOL-TO-TOOL: 4.2 SEC CHANGE
COOLANT CAPACITY: 55 GAL
TABLE SIZE: 52" X 18"
DIMENSIONS: 152" X 99" X 106"
WEIGHT: 13,500 LBS
EQUIPPED WITH:
PROGRAMMABLE COOLANT
CHIP AUGER

Options:

Programmable Coolant

Description:

Pre-owned HAAS VF4 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF4 before it's gone.
