Machine Overview

Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Cutting: 650 ipm
Max Torque: 90 ft-lbf
Spindle Nose: 4.2" - 29.2"
Drive System: Inline Direct-Drive
Tool-to-Tool: 4.2 sec change
Coolant Capacity: 55 gal
Table Size: 52" x 18"
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Description:

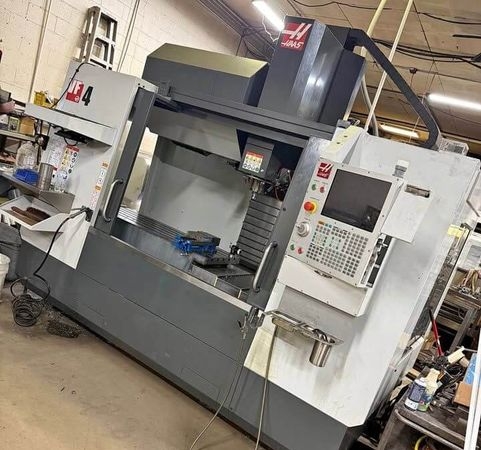

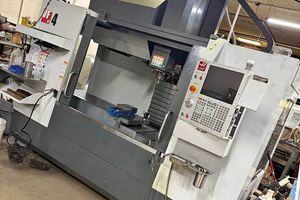

This 2022 HAAS VF4 is a versatile machine that meets the demands of today's manufacturing industry. It comes equipped with a probe, making it suitable for precise measurements and setups. This feature enables easier and faster tool setups, ensuring the job is done right the first time.

The VF4 model is known for its spacious work area, which allows you to tackle large projects with ease. The design of the machine ensures stability and confidence while operating, providing a sturdy platform for various machining tasks.

With its advanced control system, this machine allows the operator to perform multiple tasks without hassle. It offers a user-friendly interface that simplifies the process of programming and operating the machine, ideal for both seasoned machinists and those new to the field.

Included is a set of well-maintained tools that complement the capabilities of the VF4, helping you to get started right away. The machine itself shows signs of consistent care, displaying only minor wear expected from regular use.

This HAAS VF4 has been part of a productive shop and is ready to enter its next phase of operation. It's an opportunity to own a key asset in manufacturing that supports a range of applications, from metalworking to prototyping different parts.

A great addition to any machine shop looking to expand its capabilities, the VF4's practicality and adaptability make it a valuable unit for boosting production and achieving high-quality results on a wide array of jobs.
