Machine Overview

Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2" - 29.2"
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Weight: 13,300 LBS
Options:
HAAS CNC Control
20 HP 2-Speed Gear Drive
Chip Auger
High Intensity Lighting
Description:

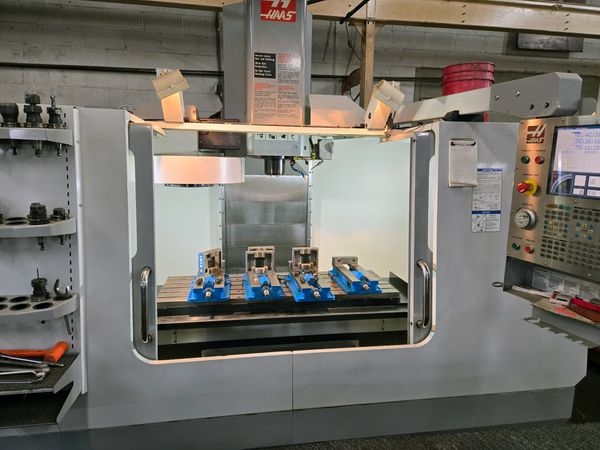

This 2008 HAAS VF4B Vertical Machining Center is a solid choice for anyone in need of a reliable and capable machine for their shop. Its highlighted features include a 20 HP 2-Speed Gear Drive, which allows for flexible operations to suit different machining needs.

The machine comes with Setting 51, allowing door override. This is a useful feature, especially when working with materials like plastics, as it lets the machine operate with the door open. This model is also equipped with a Chip Auger to help with easy and quick removal of chips, helping maintain a cleaner workspace and reducing downtime.

The HAAS VF4B's configuration is straightforward, designed to handle various types of projects with ease. Its user-friendly controls are easy to understand, facilitating smooth operation for both seasoned operators and those newer to CNC machining. The machine's build and design make it suitable for shops of varying sizes.

The 2008 VF4B is a machine that can be trusted for consistent output, having been crafted with precision and attention to detail. It's been part of many shops' operations, providing the necessary support and performance to help meet daily production goals. The manual and any additional documentation are available to assist with setup and to make transitioning this machine into your workshop as seamless as possible.
