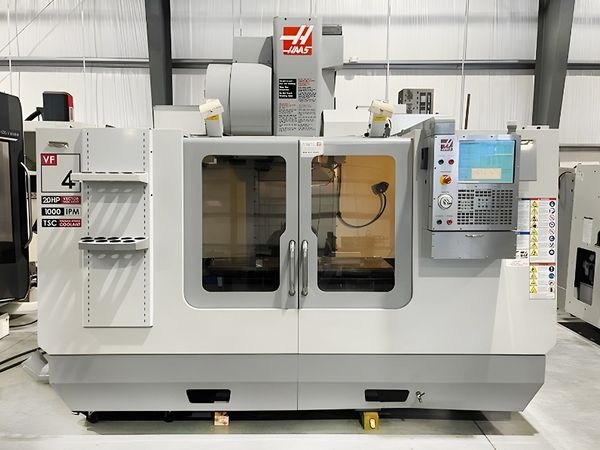

Table Size: 18” x 52”
Maximum Table Load: 3,500 Lbs.
X axis travel: 50”
Y axis travel: 20”
Z axis travel: 25”
Spindle Nose to Table Top: 4.2” / 29.2”
Spindle Taper: CAT-40
Spindle Speeds: 8,100 RPM
Spindle Motor: 20 H.P. Vector Drive
ATC Positions: 24 + 1
ATC Type: Sidemount
Maximum Tool Diameter: 3.5”
Maximum Tool Weight: 12 Lbs.
Equipped With
HAAS CNC control, Color screen
Dual RS-232 Ports & USB Port
W.I.P.S. Wireless Probing (Missing OMP-40II Prob)
Programmable Coolant Nozzle
TSC Through Spindle Coolant 300 PSI
Chip Auger
Control Options- Rigid Tapping, Coordinate Rotation & Scaling, DNC, M19 Spindle Orientation, Macros, Quick code, Advanced Tool Management, Pre-Orient Tap, Intuitive Programming System
Spindle Time: 8,955 Hours
Machine is wired for 460 volt operation.
Machine dimensions:124” L x 110” W x 102’’ H
Machine Weight: 14,500 Lbs.
Machine Location: F.O.B. Bradenton, Florida
