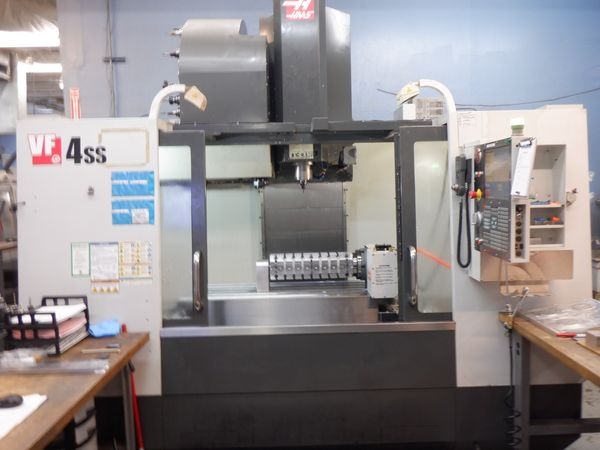

2010 HAAS VF4SS

X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1400 IPM
Rapid Rate Y Axis: 1400 IPM
Rapid Rate Z Axis: 1400 IPM
Table Size: 52" x 18"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air / Oil Injection
Max Cutting 833 IPM
T-Slot Width 0.630"
T-Slot Center Distance 3.15"
Max Thrust X, Y 3085 lbf
Max Thrust Z 3925 lbf
Max Weight on Table (evenly distributed) 1,750 lbs
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS

HAAS CNC Control
Coolant Thru Spindle
High Pressure Coolant
4th Axis Ready (Not Included)
Chip Auger
Inline Direct Drive Spindle
Tool Presetter
