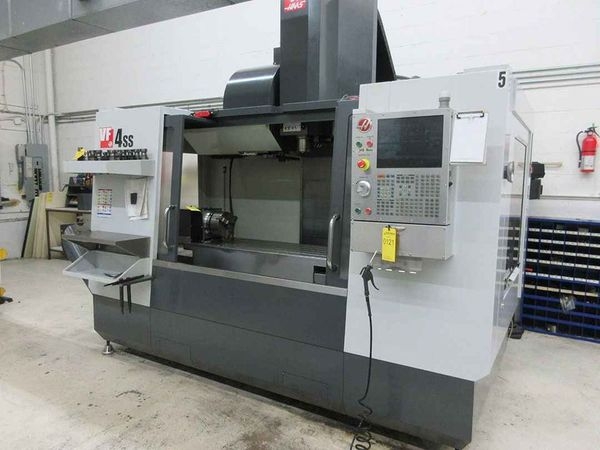

Pre-owned HAAS VF4SS 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Ma...Read More
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air / Oil Injection
Max Cutting 833 ipm
T-Slot Width 0.630"
T-Slot Center Distance 3.15"
Max Thrust X, Y 3085 lbf
Max Thrust Z 3925 lbf
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air / Oil Injection
Max Cutting 833 ipm
T-Slot Width 0.630"
T-Slot Center Distance 3.15"
Max Thrust X, Y 3085 lbf
Max Thrust Z 3925 lbf
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
Options:
HAAS CNC Control
Probe
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
HRT210 SHS Rotary Table
Lot of tooling
Super Spacer Indexing Head
High Speed Machining
Probe
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
HRT210 SHS Rotary Table
Lot of tooling
Super Spacer Indexing Head
High Speed Machining
