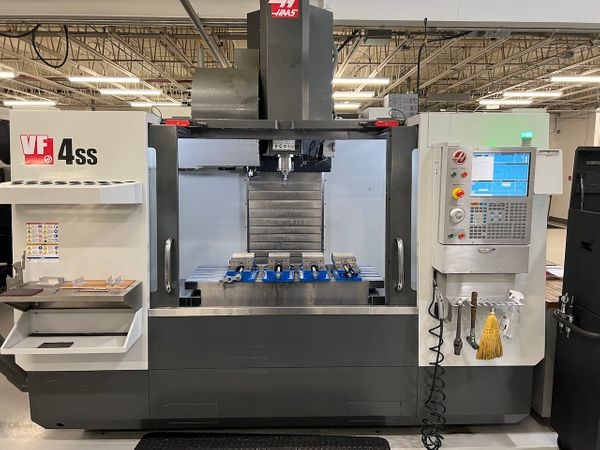

Pre-owned HAAS VF4SS 2014 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertic...Read More
Notify Me:
Rigging:
$1,500
Specs:
Table Size: 52" x 18"
Max Table Load: 1,750 LBS (Evenly Distributed)
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: BT40 (CAN BE CHANGED)
Tool Changer Positions: 30 + 1
Tool Changer Style: Sidemount
Drive System Inline Direct-Drive
New Replacement Cost $94,950
Video Available Upon Request
Location: MA, USA
Dimensions: 131" L x 102" W x 109" H
Weight: 13,500 LBS
Max Table Load: 1,750 LBS (Evenly Distributed)
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: BT40 (CAN BE CHANGED)
Tool Changer Positions: 30 + 1
Tool Changer Style: Sidemount
Drive System Inline Direct-Drive
New Replacement Cost $94,950
Video Available Upon Request
Location: MA, USA
Dimensions: 131" L x 102" W x 109" H
Weight: 13,500 LBS
Options:
HAAS CNC Control
Programmable Coolant
Chip Auger
1 GB Memory (Confirmed)
Ethernet Interface (Must Be Confirmed)
Rigid Tapping
Early Power-Failure Detection Module (Must Be Confirmed)
High Speed Machining
Programmable Coolant
Chip Auger
1 GB Memory (Confirmed)
Ethernet Interface (Must Be Confirmed)
Rigid Tapping
Early Power-Failure Detection Module (Must Be Confirmed)
High Speed Machining
