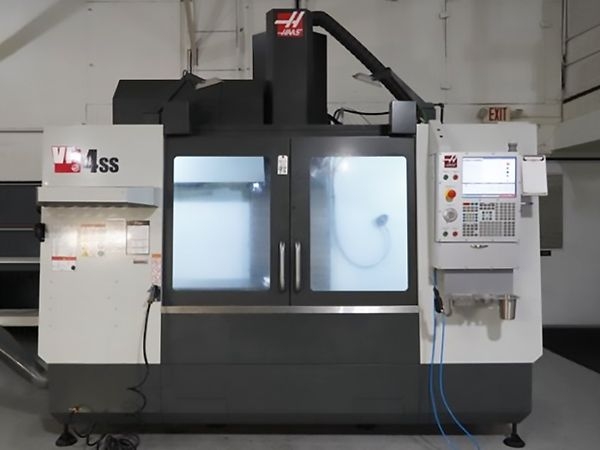

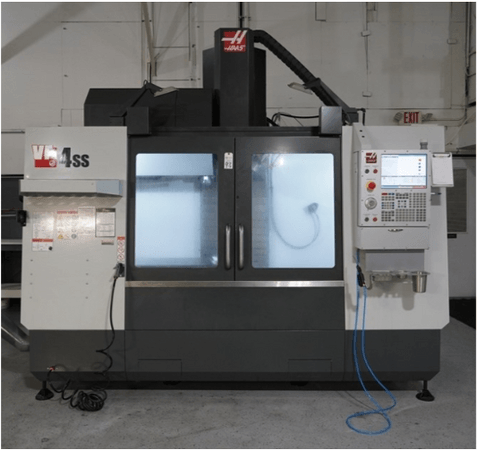

Pre-owned HAAS VF4SS 2021 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in Ohio. This HAAS V...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30+1 SMTC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Weight: 13,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30+1 SMTC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb
Table Size: 52" x 18"
Weight: 13,500 LBS
Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
15,000 RPM Spindle
Pre Wired for 4th Axis
WIPS & Tool Setter (No spindle probe)
High Pressure TSC
Chip Auger
inline direct-drive spindle
Probe
Coolant Thru Spindle
Programmable Coolant
15,000 RPM Spindle
Pre Wired for 4th Axis
WIPS & Tool Setter (No spindle probe)
High Pressure TSC
Chip Auger
inline direct-drive spindle
Seller:
GregK892
Location:
OH
