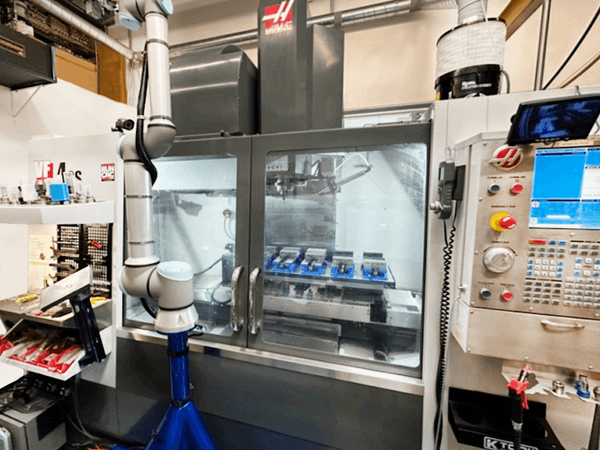

Used HAAS VF4SS APC Vertical Machining Center
Pre-owned 2012 HAAS VF4SS APC Vertical Machining Center has 5-Axis capabilities. With a Haas TR160 Trunion Table, W.I.P.S. Probe System, Large 40+1 Position ATC, Cat 40 Taper, 12,000 RPM Spindle and and a 2-Pallet APC, this machine should fit most Vertical Machining Center needs. This Haas VF4SS APC also has low cutting hours. This VMC is currently located in Freemont, CA, USA. This HAAS Vertical Machining Center5-Axis Machine will be available for a limited time. Get a quote today on this VF4SS APC before it's gone.
Max Table Load: 1,750 Lbs.
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Nose to Table Top: 4.2" - 29.2"
Spindle Speed: 12,000 RPM
Spindle Motor: 40 H.P.
Spindle Taper: CAT40
Tool Changer: 40 + 1 ATC
Tool Changer Style: Sidemount
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Coolant Tank 55 Gal
EQUIPPED WITH:
Haas CNC Control
Haas Automatic Pallet Changer
4th + 5th Axis Pre-Wire
TR-160 5-Axis Trunnion Table
WIPS Probe System
Quad Chip Auger with Belt Conveyor System
40 + 1 Position ATC
Enhanced Remote Jog Handle with Display
Control Options Include:
High Speed Machining, Auto Air Gun
Auto Power Failure Detection Module
Extended Memory, Additional M-Codes
Auto Door, Rigid Tapping, Ethernet,
ONLY 1,500 SPINDLE HOURS
Dimensions: 131" x 92" x 101"
Weight: 13,800 LBS
Probe
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
5 Axis
TR160 Trunnion Table Pallet Set Up (1 Pallet Only)
5x KURT Vice Pallet Set Up (1 Pallet Only)
Blank Pallet (1 Pallet Only)
40 H.P. Vector Drive
W.I.P.S. Renishaw Probe System
