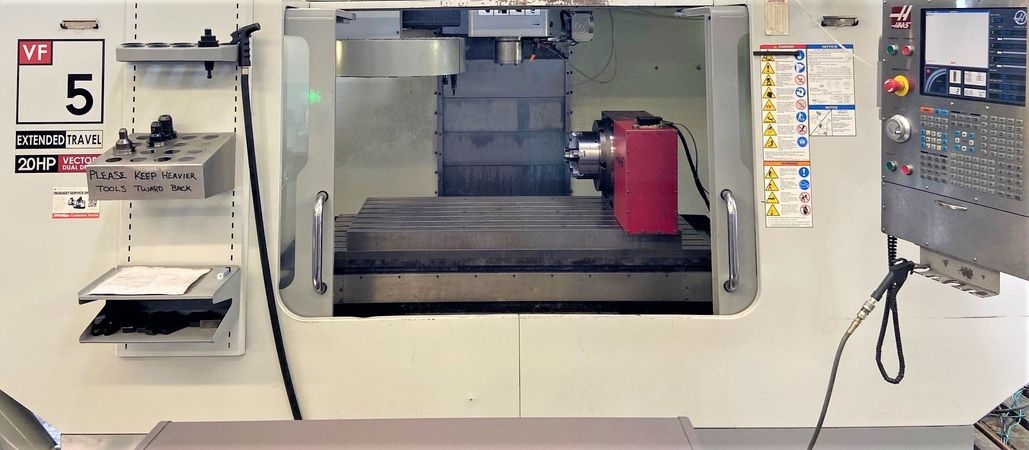

Pre-owned HAAS VF5-40XT 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF5-40XT before it's gone.
Notify Me:
Rigging:
Free
Specs:
X Axis Travel: 60"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 62" x 23"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Dimensions: 168" x 102" x 113"
Weight: 15,600 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 62" x 23"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Dimensions: 168" x 102" x 113"
Weight: 15,600 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT310 Rotary
Extended X axis travel to 60"
Rigid Tapping
Enhanced Remote Jog Handle with LCD Display
Programmable Coolant
4th Axis Drive and Wiring
300 PSI Through Spindle Coolant
Chip Auger
Coord Rotation & Scaling
Intuitive Programming
4AXBL, 4th Axis Drive
User Definable Macros
Ethernet Interface
Table Spacer
Hard Disk Drive
Front windows need to be replaced
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT310 Rotary
Extended X axis travel to 60"
Rigid Tapping
Enhanced Remote Jog Handle with LCD Display
Programmable Coolant
4th Axis Drive and Wiring
300 PSI Through Spindle Coolant
Chip Auger
Coord Rotation & Scaling
Intuitive Programming
4AXBL, 4th Axis Drive
User Definable Macros
Ethernet Interface
Table Spacer
Hard Disk Drive
Front windows need to be replaced
