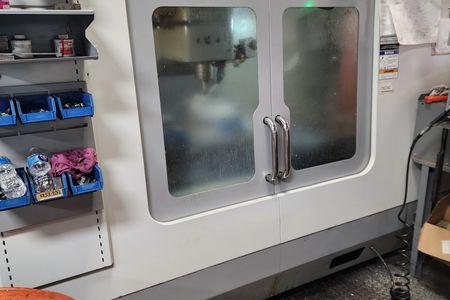

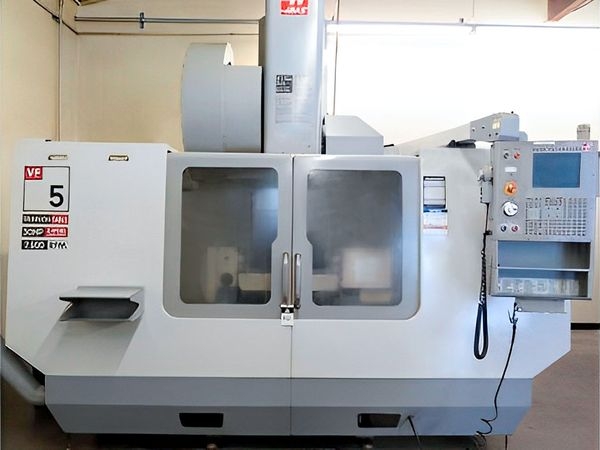

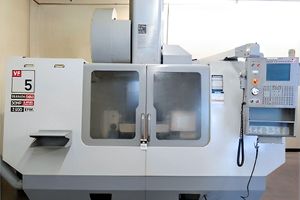

HAAS VF5-50TR CNC Mill

X Axis Travel: 50"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
A Axis - Tilt ± 120 °
B Axis - Rotation 360 °
Max Torque 340 ft-lbf
Drive System 2-Speed GB
Platter Diameter 8.3"
Max Weight 200 lb
Max Part Swing 24"
Rapids on A 60 °/sec
Rapids on B 60 °/sec
Max Cutting A 33 °/sec 3
Max Cutting B 33 °/sec
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 7"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 6.3 s
Table Size: 54" x 26"
Dimensions: 168" x 102" x 125"
Weight: 16,250 LBS

HAAS CNC Control
Programmable Coolant
5 Axis
TR210 8" Trunnion
2 Speed Gearbox
Remote Jog Handle
Chip Auger
