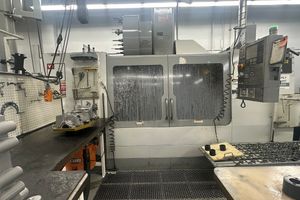

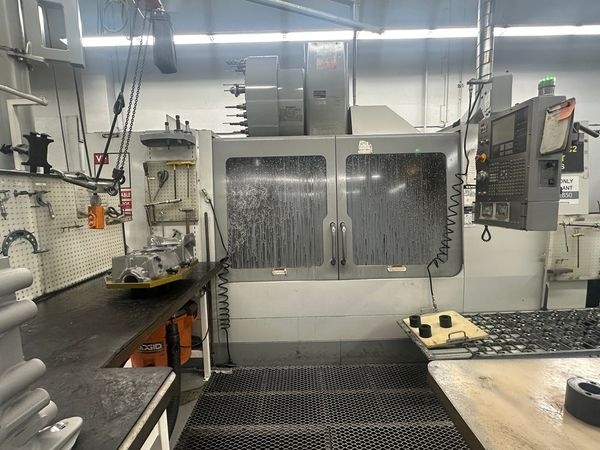

2006 HAAS VF6-40TR

Available to be seen running
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 12.2" x 12.2" Plater
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting 500ipm
Max Tool Diameter 2.5'
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12"
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
A Axis - Tilt ± 120 °
B Axis - Rotation 360 °
Max Weight on Platter 500 lb
Max Part Swing 31"
Rapids on A 50 °/sec
Rapids on B 50 °/sec
Max Cutting A 33 °/sec
Max Cutting B 33 °/sec
Dimensions: 195" x 102" x 135"
Weight: 26,100 LBS
Available to be seen running

Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
