Machine Overview

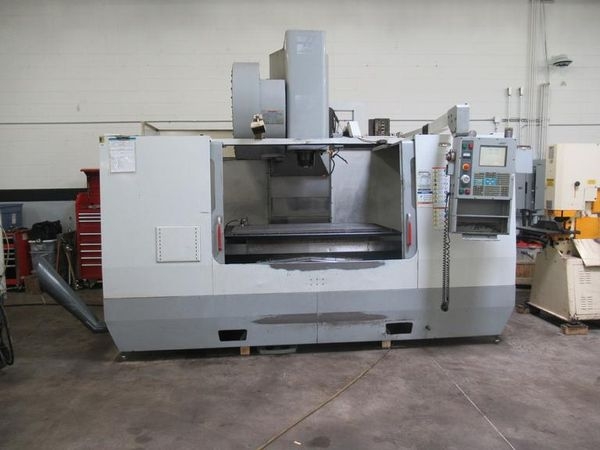

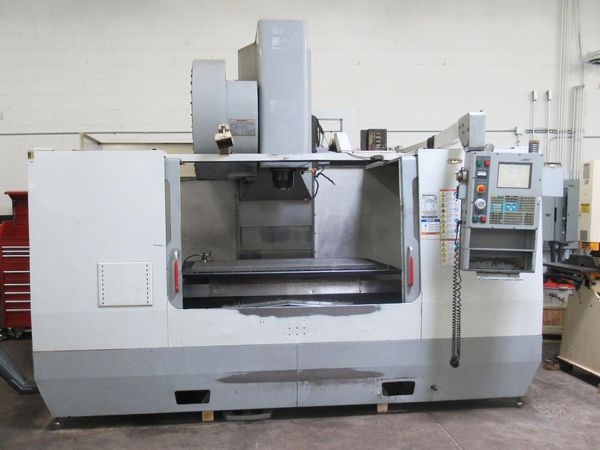

This 2004 HAAS VF6-50 offers a robust configuration for machining tasks. It features the Haas 32-Bit CNC Control, giving you a user-friendly interface and precise command of the machine. The table size measures 64 inches by 28 inches, accommodating large workpieces with ease.
The machine travels are extensive, with dimensions of 64 inches in X, 32 inches in Y, and 30 inches in Z. This allows for a wide range of motion, suitable for diverse operations. The table capacity reaches up to 4,000 pounds, supporting heavy machining needs.
This model uses a CAT-50 taper spindle with a maximum spindle speed of 7,500 RPM. The two-speed gearbox enhances operational versatility. The rapid traverse rates are 540 IPM on the X-axis and 600 IPM on both Y and Z, while the maximum cutting feed rate is 500 IPM, facilitating faster processes.
The VF6-50 is equipped with a side mount tool changer, featuring a twin arm design and offering 30 stations for tools. The tool change time is approximately 4.2 seconds, enhancing cycle times significantly. It allows for a maximum tool length of 4 inches or 10 inches with open adjacent pots, and a max tool weight of 30 pounds.
The spindle drive is powered by a 30 HP vector drive, providing strong cutting capabilities. The spindle-to-table distance can be adjusted between 5 inches and 35 inches to fit various machining requirements.
This unit includes advanced features like the 4th Axis Brush Style Drive and Wiring, Through Spindle Coolant, and a Tool and Parts Probing System. Additionally, there is high-intensity lighting, a 3-1/2" floppy drive, a chip auger, and a comprehensive coolant system with tank and pumps. It operates on 208-230 Volt 3 Phase power.
