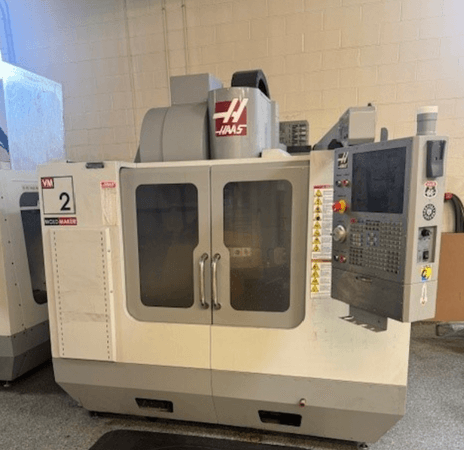

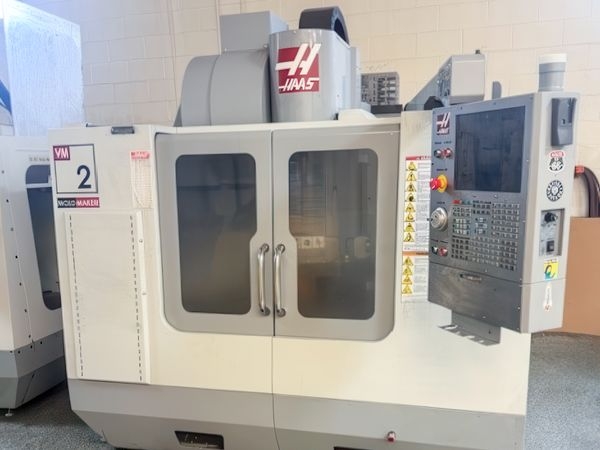

Pre-owned HAAS VM2 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Mach...Read More
Seller Needs:
Payment:
Specs:
Table Size: 36" x 18"
Max Table Load: 3,000 Lbs.
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Motor: 40 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 + 1 ATC
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 11"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
Coolant Capacity 55 Gal
Equipped With:
Haas CNC Control
Chip Auger
Side Mount ATC (24+1)
Programmable Coolant
Rigid Tapping
Window Air Blast
Mold Making Package Including:
High Speed Machining
User Definable Macros
Coordinate Rotation & Scaling
Large Remote Jog Handle with Touch Screen LCD
Dimensions: 102" x 92" x 101"
Weight: 9,700 LBS
Max Table Load: 3,000 Lbs.
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Motor: 40 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 + 1 ATC
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 11"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
Coolant Capacity 55 Gal
Equipped With:
Haas CNC Control
Chip Auger
Side Mount ATC (24+1)
Programmable Coolant
Rigid Tapping
Window Air Blast
Mold Making Package Including:
High Speed Machining
User Definable Macros
Coordinate Rotation & Scaling
Large Remote Jog Handle with Touch Screen LCD
Dimensions: 102" x 92" x 101"
Weight: 9,700 LBS
Options:
HAAS CNC Control
Programmable Coolant
Chip Auger
High Speed Machining
Rigid Tap
Sidemount ATC
Multi-Fixture Table
Programmable Coolant
Chip Auger
High Speed Machining
Rigid Tap
Sidemount ATC
Multi-Fixture Table
