Machine Overview

Specs:
TABLE LENGTH: 1,625.6 mm
TABLE WIDTH: 711.2 mm
X-AXIS TRAVEL: 1,625.6 mm
Y-AXIS TRAVEL: 812.8 mm
Z-AXIS TRAVEL: 762 mm
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 22.4 kW
SPINDLE TAPER: HSK-A63
TOOL CAPACITY (ATC): 30
ROTARY OR TRUNNION: Yes

HAAS NEXTGEN CONTROL
HAAS TR200Y TRUNNION TABLE
4TH AXIS DRIVE & WIRING
5TH AXIS DRIVE & WIRING
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
SIDE-MOUNT TOOL CHANGER (30 ATC)
12,000 RPM (HSK-A63 TAPER)
LINEAR SCALES
MINIMUM QUANTITY LUBRICATION SYSTEM
AUXILIARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
THROUGH-TOOL AIR BLAST
WINDOW AIR BLAST
AUTO AIR GUN
HIGH-INTENSITY LIGHTING
REMOTE JOG HANDLE
CHIP TRAY FILTER KIT
CHIP AUGER
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
ETHERNET
32GB EXPANDED MEMORY
HAASCONNECT: REMOTE MONITORING
WIFI CONNECTIVITY
WIFI CAMERA
INTERNAL HIGH-VOLTAGE TRANSFORMER (MACHINE SET-UP TO RUN ON 440V)** AS OF MAY 2025, FEED CUTTING TIME 2,689 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $290,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCASE** GLASS FOR THE LEFT FRONT DOOR IS BROKEN
** MACHINE AVAILABLE TO BE SOLD WITH OR WITHOUT THE TR200Y TRUNNION TABLE
Options:
Programmable Coolant
Description:

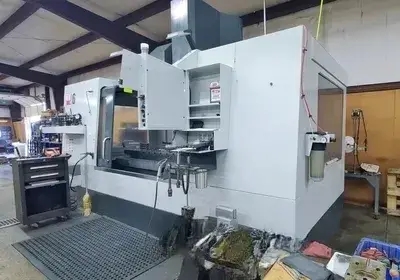

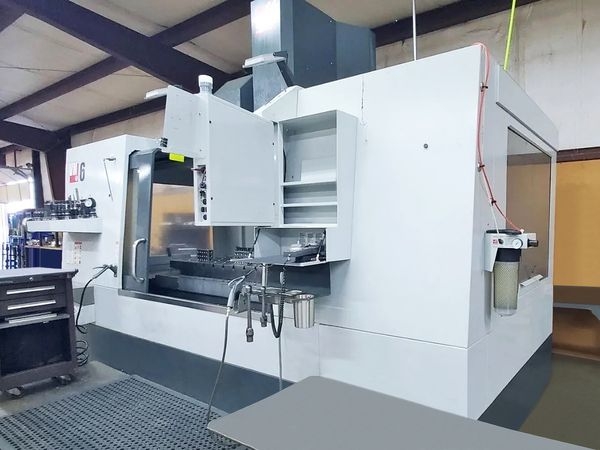

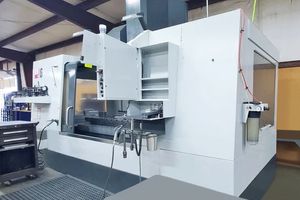

This 2019 HAAS VM6 is a versatile choice for machining needs, featuring Programmable Coolant, which enhances its operational capabilities. It is equipped with a HAAS NEXTGEN CONTROL system, ensuring a user-friendly experience for operators.

The machine boasts a generous TABLE LENGTH of 1,625.6 mm and TABLE WIDTH of 711.2 mm, with X-AXIS TRAVEL of 1,625.6 mm, Y-AXIS TRAVEL of 812.8 mm, and Z-AXIS TRAVEL of 762 mm, providing ample space for varied tasks. The SPINDLE SPEED reaches up to 12,000 RPM, driven by a 22.4 kW SPINDLE MOTOR with an HSK-A63 SPINDLE TAPER, supporting a TOOL CAPACITY of 30 through its SIDE-MOUNT TOOL CHANGER.

This machine includes the HAAS TR200Y TRUNNION TABLE with both 4TH and 5TH AXIS DRIVE & WIRING, expanding its multi-axis machining capabilities. The HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI) and RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS) add precision and cooling efficiency.

Additional features like the HIGH-INTENSITY LIGHTING, AUTO AIR GUN, and REMOTE JOG HANDLE facilitate ease of use and improved visibility. Programmability is enhanced through DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL, and VISUAL PART PROGRAMMING SYSTEM (VPS EDITING), which complement the COORDINATE ROTATION & SCALING functions.

The machine comes with advanced connectivity options like USB PORT, ETHERNET, 32GB EXPANDED MEMORY, HAASCONNECT: REMOTE MONITORING, WIFI CONNECTIVITY, and a WIFI CAMERA. It also includes an INTERNAL HIGH-VOLTAGE TRANSFORMER configured for 440V use.

As of May 2025, the machine has a FEED CUTTING TIME of 2,689 HOURS, predominantly cutting aluminum. The full replacement cost, as equipped, is $290,000. It is currently set up under power and available for immediate inspection and purchase. Note that the glass for the left front door is broken, and the machine can be sold with or without the TR200Y TRUNNION TABLE.
