Machine Overview
XP12S
NC Hanwha Fanuc-i
Max. machining diameter (mm) Ø12
Z1 Stroke (mm) 140
Main spindle Speed (rpm) 12,000
Motor (kW) 2.2/5.5
OD tool No. of tools 6 (?12mm)
Front tool No. of tools 3 (ER11, Ø20)
Cross drill No. of tools 3 (ER11 x 2, ER16 x 1)
Speed (rpm) 6,000
Motor (kW) 0.5
Sub spindle Speed (rpm) 8,000
Motor (kW) 0.55/1.1
Machine size (L x W x H) (mm) 1,650 x 1,090 x 1,640
Weight (kg) 1,800
Power consumption (Cable size) 10kVA, 6.7kW (VCTF 10SQ x 4C)
Air flow rate (Liter/Min) 120 ~ 150
Live Tooling
Sub Spindle

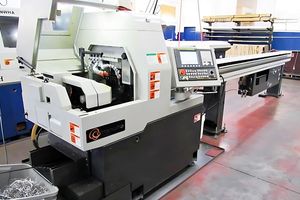

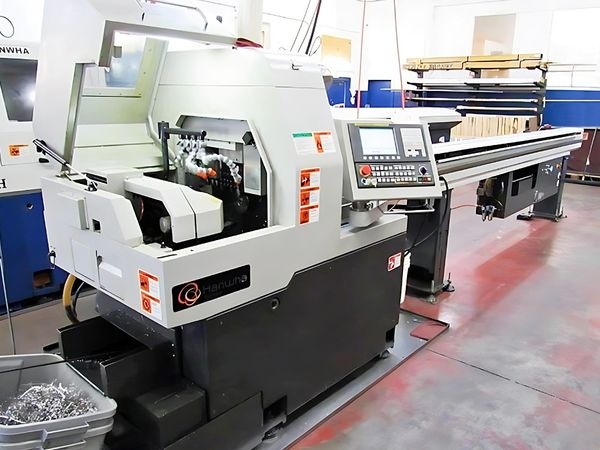

Pre-owned HANWHA XP12S 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in North Carolina. This HANWHA CNC Lathe is available for a limited time. Get a quote today on this XP12S before it's gone.
