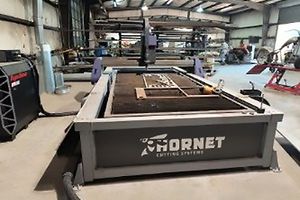

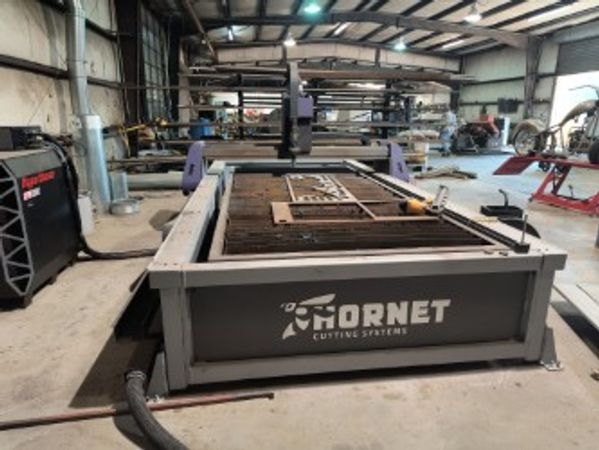

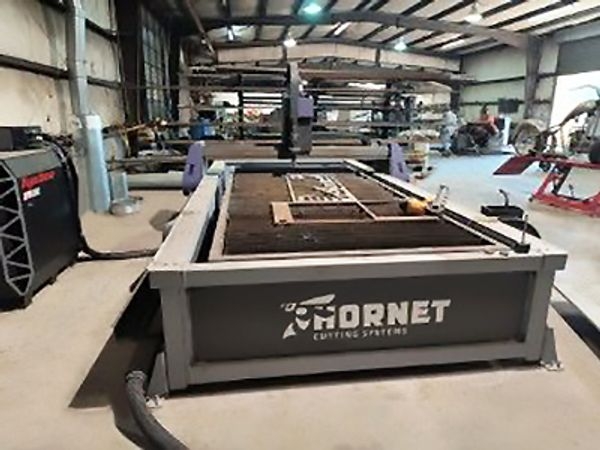

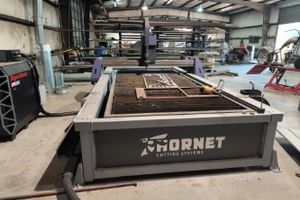

2019 HORNET HD

Hornet HD 5 X 12
CNC Plasma Cutter
Standard Features of the Hornet HD CNC Plasma Cutter
• Hypertherm Plasma Edge Connect CNC Control with Phoenix CNC software
• Heavy wall steel tubing machine frame and gantry beam
• Fabricated end trucks
• 2100 IPM (53.3 mm/min) rapid traverse speed
• Tucked 30 mm linear guides on main rail axis (X)
• Dual 20 mm linear guides on cross axis (Y)
• Alloy steel pinion gears
• 3/4” (19.5 mm) helical gear rack
• Planetary gear heads
• Flexible cable carriers on both X & Y axis
• Tool carriage for one plasma & one oxy-fuel torch station
Specifications:
HPR130XD
Mild Steel Cut Capacity
Dross Free 16mm (5/8”)
Production Pierce 32mm (1-1/4”)
Max Cutting Cap. 38mm (1-1/2”)
Stainless Steel Cut Capacity
Production Pierce 20mm (3/4”)
Max Cutting Cap. 25mm (1”)
Aluminum Cut Capacity
Production Pierce 20mm (3/4”)
Max. Cutting Cap. 25mm (1”)
