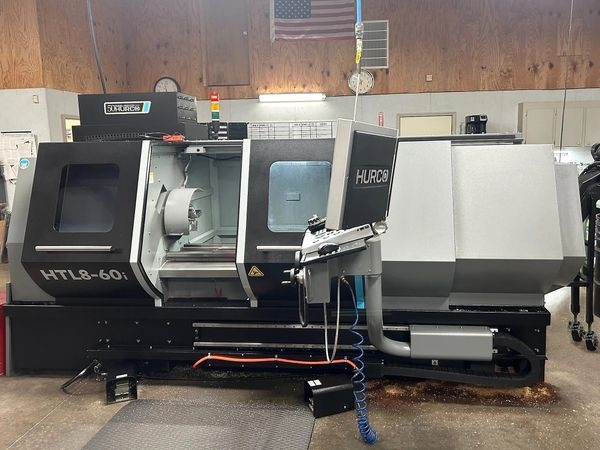

2023 HURCO HTL8 60I

ID:14401
Brand:HURCO
Model: HTL8 60I
Year:2023
Category:CNC Lathe
Location:Alabama

Located In Alabama

SHIPPING COST :

HURCO HTL8 60I AI Chat

Loading ...

Machine Overview

Specs:

Bar Capacity: 2.56"
Chuck Size: 8"
Spindle Speed: 2,600 RPM
Spindle Motor: 24 HP
X Axis Travel: 11.4"
Z Axis Travel: 63.5"
Turret Tools: 8 Station
Max Turning Dia: 12.75"
Max Turning Length: 59.1"
Max Swing: 18.7"
Weight: 8,490 LBS
Swing Over Cross Slide Diameter: 9.25in
Max Torque (High Gear): 252 ft. lbs @ 500RPM
Spindle Nose: D1-6
Tool Type: Slotted Disc
Turret Index Time (Adjacent): 0.4seconds
Turret Index Time (Furthest): 1.4seconds
Max Operating Floor Space: 184.5 x 122.3in
Machine Height: 75.7in

Box-way, long-bed lathe built for real cutting, not a light-duty trainer or hobby machine.

If you’re coming from lighter turning centers and want more bed length, more torque, and a heavier casting, this HTL8-60i checks a lot of boxes. The gap-bed design provides extra clearance near the chuck, making it easier to handle larger diameters and longer parts without fighting the machine.

This platform is well suited for long parts, shafts, bushings, and general turning work where rigidity and stability matter. It works well for short to medium production runs and repeat jobs. The easy-to-learn control and full handwheel and manual modes add flexibility that can speed up setups and adjustments, which helps streamline turnaround on first articles and one-off work without limiting production capability.

Hurco’s MAX5 / WinMax conversational control is a smooth transition for shops coming from Fanuc or Haas. The manual and handwheel operation make day-to-day adjustments straightforward, helping reduce downtime when jobs change or operators rotate between machines.

From a cutting standpoint, this is a true box-way lathe with real torque, so you can lean on it in steel, stainless, and long parts without the chatter or flex commonly seen on lighter machines.

This machine was taken in on trade after a customer upgraded to a sub-spindle lathe. Sold new in 2023. Clean, low hours, and ready to work. The machine is currently at our rigger just outside Charlotte and ready to ship.

Good fit if you’re running:
• Long shafts or length-sensitive parts
• Steel or stainless, not just aluminum
• Short to medium production runs or repeat jobs
• Shops that value rigidity and operator-friendly control

Not ideal if you need:
• Sub-spindle
• Live tooling
• High-volume bar-fed production

Hours
• Machine Hours approximately 562
• Spindle Hours approximately 106

Options:

Chip Conveyor

Description:

This 2023 HURCO HTL8 60i is an impressive machine designed for those who seek precise crafting and ease of use. The lathe offers a user-friendly interface, making it accessible for both new users and experienced machinists. Its construction reflects modern standards, providing a sturdy foundation for various tasks.

The 8-inch spindle bore and up to 60-inch distance between centers give ample space for a range of projects, allowing users to work on larger pieces if necessary. It provides flexibility, adapting to different machining needs. This model is built with attention to detail, ensuring that every component works seamlessly together.

Equipped with advanced control systems, this lathe simplifies complex jobs. The intuitive controls allow straightforward operation, reducing time spent on setup and increasing productivity. The machine's design focuses on helping the user achieve precise cuts and finishes, offering adjustable settings to suit specific project requirements.

With safety being a top priority, this lathe includes several built-in features aimed at safeguarding users during operation. These additions bolster confidence while using the machine, knowing that it meets current safety standards.

The HURCO brand is known for its dedication to innovation and quality. This model is no exception, as it reflects thoughtful engineering and craftsmanship. Those who prioritize durability and practicality will find this lathe aligns well with their expectations.

Whether you're upgrading your current setup or starting new projects, the 2023 HURCO HTL8 60i stands out as a noteworthy option. Its blend of modern tech with functional design offers users a valuable tool for their workshops.
