Machine Overview

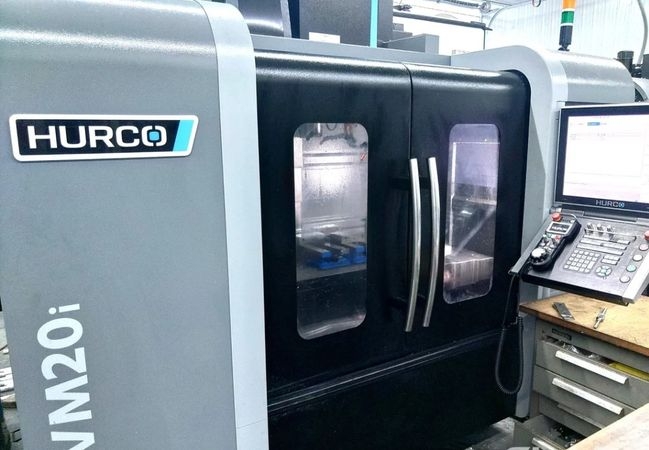

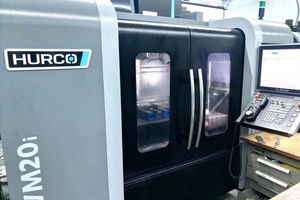

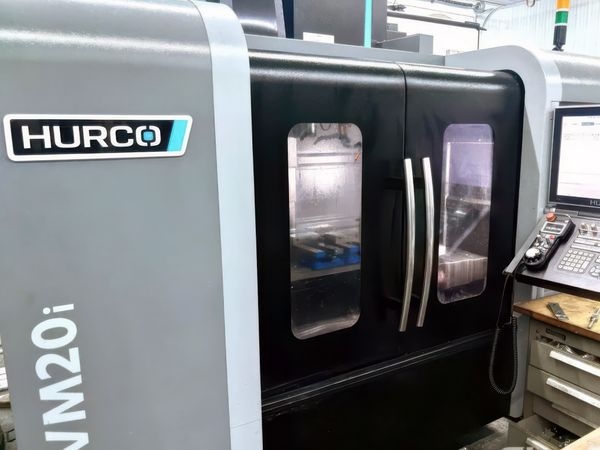

This 2022 HURCO VM20I is an equipped machine tool ready for immediate inspection and purchase.
Comes with the following options: Probe. This machine features a table length of 1,168.4 mm and a table width of 457.2 mm. It offers an X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 508 mm. The spindle is capable of speeds up to 12,000 RPM, powered by a 14.9 kW motor and uses a CAT 40 spindle taper. Additionally, it includes an automatic tool changer (ATC) with a tool capacity of 24.
Equipped with the HURCO WINMAX CONTROL, the machine also includes advanced features such as an advanced verification graphic, DXF, NC productivity package, and provisions for probing with tool and part probe software. Additional capabilities include UltiPockets, Insert Pockets, rigid tapping, and helical ramp operations, complemented by 3D mold functions, NC conversational merge, swept surface, TPS tool fixture, SelectSurface finish quality, and a comprehensive tool & material library. The Ultimotion and tool change optimization features further enhance its performance.
As of June 2026, the spindle time is recorded at 923 hours. Originally owned, this machine has been employed primarily for cutting aluminum and plastic. It was installed new in June 2023, reflecting a full replacement cost, as equipped, of $150,000. The vices and tooling on the table as pictured are not included in the sale.
The machine remains in-plant and under power, ready for evaluation.
