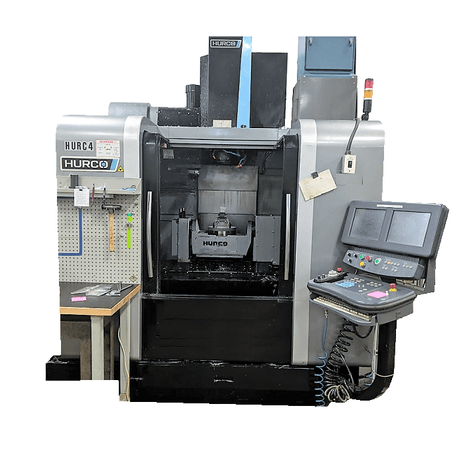

Brand:
HURCO
Model:
VMX 30UHSi
Year:
2013
Category:
Vertical Machining Center
ID:
3327
Specifications:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20.5"
Rapid Rate X Axis: 1,771 IPM
Rapid Rate Y Axis: 1,771 IPM
Rapid Rate Z Axis: 1,575 IPM
Table Size: 9.8 x 9.8
Max Table Load: 440 LBS
Spindle Motor: 47.00 HP
Spindle Speed: 18,000 RPM
Spindle Taper: HSK63A
Tool Changer: 40 ATC
Dimensions: 155 x 161 x 112
Weight: 10,956 LBS
Y Axis Travel: 20"
Z Axis Travel: 20.5"
Rapid Rate X Axis: 1,771 IPM
Rapid Rate Y Axis: 1,771 IPM
Rapid Rate Z Axis: 1,575 IPM
Table Size: 9.8 x 9.8
Max Table Load: 440 LBS
Spindle Motor: 47.00 HP
Spindle Speed: 18,000 RPM
Spindle Taper: HSK63A
Tool Changer: 40 ATC
Dimensions: 155 x 161 x 112
Weight: 10,956 LBS
Equipped With:
Hurco Winmax Control
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Renishaw spindle probe and laser tool probe
5 Axis trunnion
2.5 arc second encoders on A and C-axis
simultaneous 5 Axis CNC Machining
tool centerpoint management and coordinate rotation and scaling
spindle chiller
on-control simulation
coolant wash down
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Renishaw spindle probe and laser tool probe
5 Axis trunnion
2.5 arc second encoders on A and C-axis
simultaneous 5 Axis CNC Machining
tool centerpoint management and coordinate rotation and scaling
spindle chiller
on-control simulation
coolant wash down
Price:
$149,500
Seller:
CurtD563
Location:
IL
Serial:
M371U-1600183A3J3H
History:
The spindle has recently been rebuilt by Kessler which is the OEM. Routine maintenance has been performed by our internal maintenance department and any service work has been done directly by Hurco. We have been running this machine for very small parts and have decided that it is too large of a machine for what we do regularly. We are switching to smaller machines that take up less floor space
